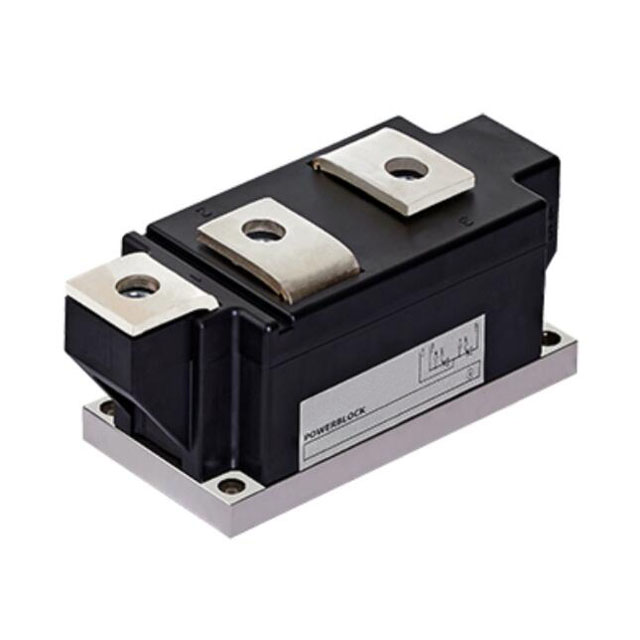

DD435N40K: 60mm Rectifier Diode Power Module, Voltage 4000V with Pressure Contact Technology

The DD435N40K is a 4000V, 435A rectifier diode power module designed and assembled using high reliability pressure contact technology with an isolated copper backplane.

DD435N40K Specifications:

Diode Configuration: 1 pair Serial Connection

Technology: Standard

Voltage - DC Reverse (Vr) (Max): 4000 V

Current - Average Rectification (Io) (per diode): 573A

Voltage - Forward (Vf) at varying If: 1.71 V @ 1200 A

Speed: Standard Recovery >500ns, > 200mA (Io)

Current - Reverse Leakage at varying Vr: 50 mA @ 4000 V

Operating Temperature - Junction: -40°C ~ 150°C

Mounting Type: Chassis Mount

Package/Housing: Module

DD435N40K Applications:

Motor Controls and Drives

Wind Energy Systems

Traction

Commercial, Construction and Agricultural Vehicles (CAV)

Uninterruptible Power Supplies (UPS)
