CYPAS2174A1-32LQXQT: EZ-PD™ PAG2-PD Power Delivery Controller - EZ-PD™ PAG2-PD Highly Integrated Power Delivery Controller for Power Adapters

Basic Information:

Model: CYPAS2174A1-32LQXQT

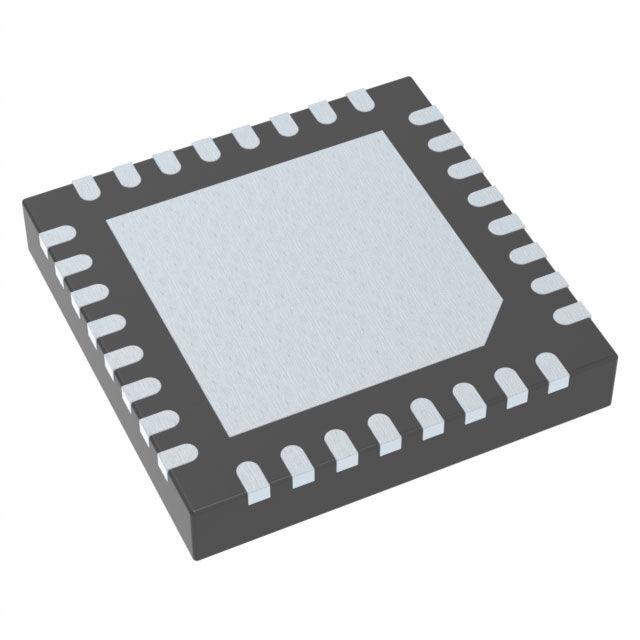

Package: QFN-32

Type: EZ-PD™ PAG2-PD Power Controller

Family: EZ-PD™

Application: Controller, USB

Voltage - Input: 34V

Number of Outputs: 1

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 32-WFQFN Undeployed Pad

Supplier Device Package: 32-QFN (5x5)

CYPAS2174A1-32LQXQT--EZ-PD™ The PAG2-PD is a highly integrated USB-C PD controller that complies with the latest USB type-C and PD standards and is designed for use in power adapters and chargers. It integrates all Type-C port termination resistors, a 34V capacitance regulator, a high-voltage VBUS NFET gate driver, VBUS fault protection, VBUS to CC short-circuit protection, and integrated feedback circuitry for voltage (VBUS) regulation, resulting in a significant BOM advantage.

CYPAS2174A1-32LQXQT Applications:

USB-C Chargers and Adapters

USB-C chargers and adapters (with EPR)

Power adapters with USB PD and legacy charging support

28V EPR chargers/adapters and wall sockets
