Service Telephone:86-755-83294757
Trade Name:Microcontroller - MCU
Brand:ADI
Particular Year:25+
Package:PQFP-52
Delivery Date:New and Original
Stock: 3000pcs

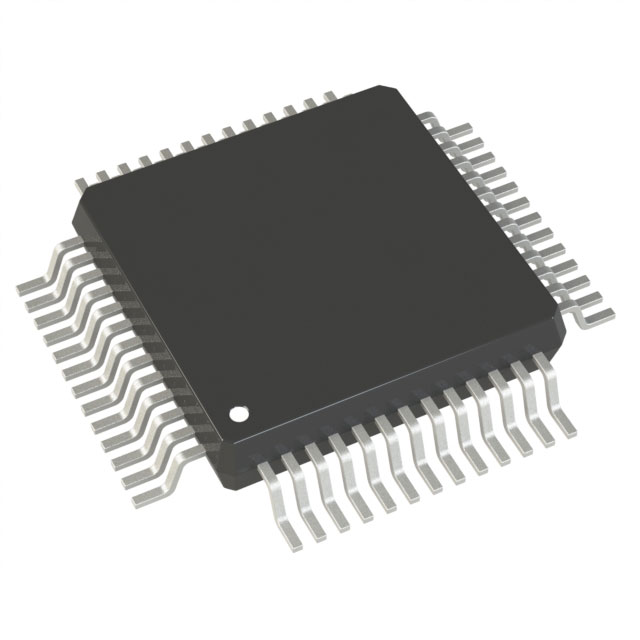

ADUC843BSZ62-5 Precision Analogue Microcontroller: 16MIPS 8052 Flash MCU + 8-channel 12-bit ADC
The ADUC843BSZ62-5 is a complete smart sensor front-end, integrating a high-performance self-calibrating multi-channel ADC, a dual-channel DAC, and an optimised single-cycle 20 MHz 8-bit MCU (8051 instruction set compatible) on a single chip. The microcontroller is an optimised 8052 core with peak performance up to 20 MIPS. Three different memory options are available, supporting up to 62 kB of non-volatile Flash/EE program memory. 4 kB of non-volatile Flash/EE data memory, 256 bytes of RAM and 2 kB of expansion RAM are also integrated on-chip.
Basic Information:
Model: ADUC843BSZ62-5
Package: PQFP-52
Type: Microcontroller - MCU
ADUC843BSZ62-5 Product Features:
Improved performance
Single-cycle 20 MIPS 8052 core
High speed 420 kSPS 12-bit ADC
Increased memory
Up to 62 KB on-chip Flash/EE programme memory
4 KB on-chip Flash/EE data memory
In-circuit programmable
Flash/EE with 100-year retention time and 100,000 cycles of endurance
2304 bytes of on-chip data RAM
Smaller Package
8 mm × 8 mm chip-scale package
52-pin PQFP pin-compatible upgrades
Analogue I/O
8-channel, 420 kSPS high-precision, 12-bit ADC
On-chip, 15 ppm/°C reference voltage source
DMA controller, high speed ADC to RAM capture
Two 12-bit voltage output DACs1
Dual Output PWM Σ-Δ Type DACs
On-chip temperature monitor function
Based on 8052 core
8051-compatible instruction set (max: 20 MHz)
High-performance single-cycle core
32 kHz external crystal, on-chip programmable PLL
12 interrupt sources, 2 priority levels
Dual Data Pointer, 11-bit Extended Stack Pointer
On-chip Peripherals
Time Interval Counter (TIC)
UART, I2C® and SPI® serial I/Os
Watchdog Timer (WDT)
Power Supply Monitor (PSM)
Power
Normal: 4.5 mA (3 V, core CLK = 2.098 MHz)
Shutdown: 10 μA (3 V)
