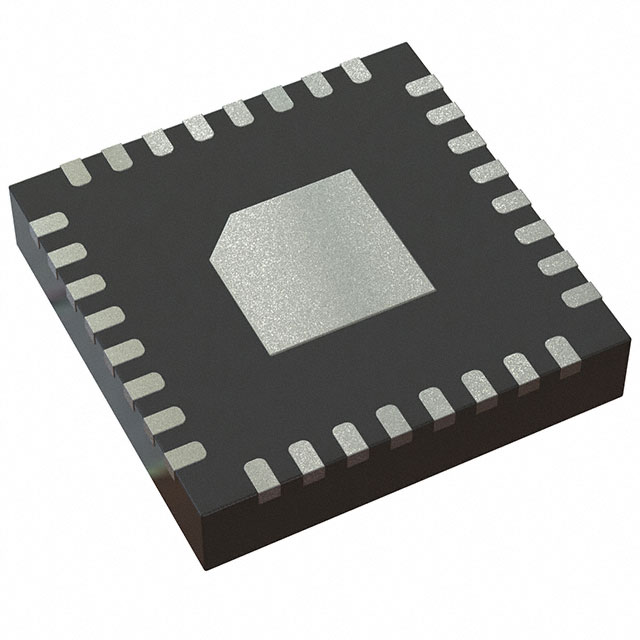

MSP430I2041TRHBR microcontrollers (MCUs) is part of the MSP430™ Metrology and Monitoring portfolio. The architecture and integrated peripherals, combined with five extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers,and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in less than 5 µs.

Features

Supply voltage range: 2.2 V to 3.6 V

Intelligent digital peripherals

Two 16-bit timers with three capture/compare registers each

Hardware multiplier supports 16-bit operations

Flexible power management system

Integrated LDO with 1.8-V regulated core supply voltage

Supply voltage monitor with programmable level detection

Brownout detector

Built-in voltage reference

Temperature sensor

Clock system

16.384-MHz internal digitally controlled oscillator (DCO)

DCO operation with internal or external resistor

External digital clock source

Applications

Metering

Submetering

Power monitoring and control

Industrial sensors

1-phase AC and DC power monitoring

2-phase electronic meters

Smart plugs

Smart power strips

Medical – multiple-parameter patient monitoring
