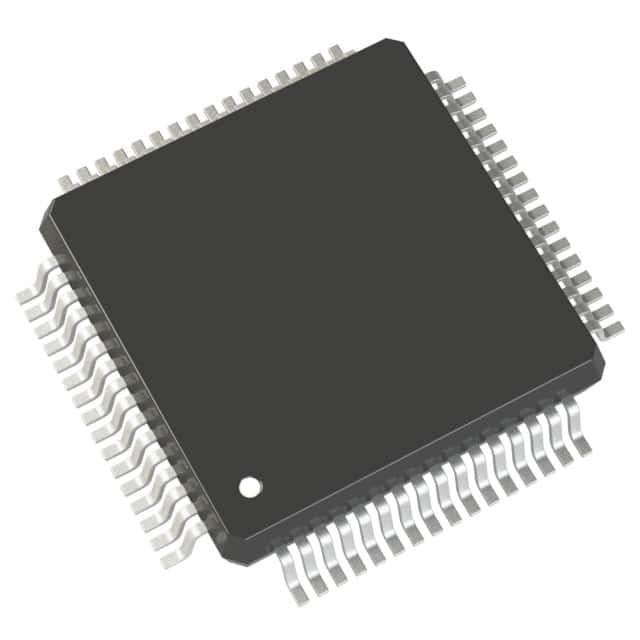

The FS32K142HAT0MLHR is a scalable, low-power microcontroller based on the ARM® Cortex-M4F kernel and is AEC-Q100 certified with advanced functional safety, information security and software support for industrial and automotive ASIL B/D body, area control and electrification applications.

Product Specifications:

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 80MHz

Connectivity: CANbus, FlexIO, I²C, LINbus, SPI, UART/USART

Peripheral: POR, PWM, WDT

Number of I/ OS: 58

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash

EEPROM capacity: 4K x 8

RAM size: 32K x 8

Voltage - power supply (Vcc/Vdd) : 2.7V ~ 5.5V

Data converter: A/D 16x12b SAR; D/A1x8b

Oscillator type: Internal

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

Package/shell: 64-LQFP

Supplier Device package: 64-LQFP (10x10)
