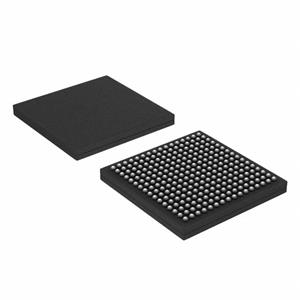

The MK70FN1M0VMJ15 microcontroller is based on the Arm® Cortex-M4 kernel and operates at frequencies up to 150MHz. The K70 MCU family also includes an integrated graphics LCD controller, IEEE®1588 Ethernet MAC, full high-speed USB 2.0(OTG) with device charger detection, hardware encryption, and tamper detection capabilities. The MCU comes in a 256-pin MBGA package that offers 1MB of flash memory.

Device Specifications:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 150MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, SB OTG

Peripheral: DMA, I²S, LCD, LVD, POR, PWM, WDT

Number of I/ OS: 128

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 128K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 3.6V

Data converter: A/D 71x16b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/housing: 256-LBGA

Supplier Package: 256-MAPPBGA (17x17)
