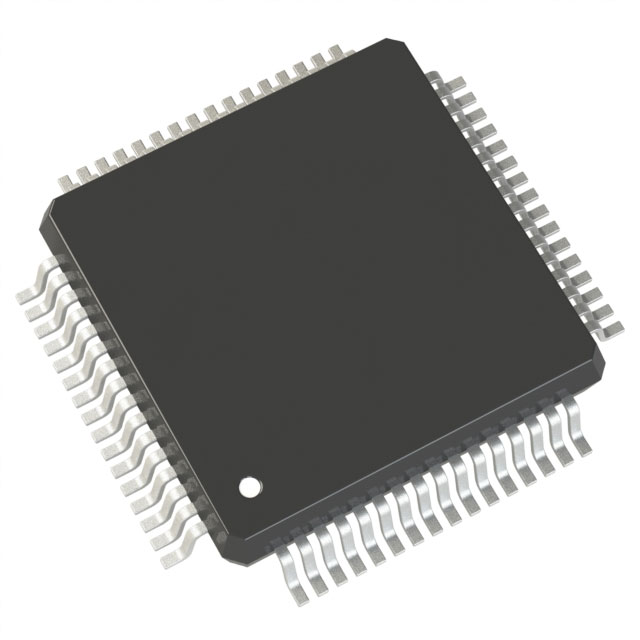

S9S12GN48F0VLHR is an optimized, automotive, 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. S9S12GN48F0VLHR is intended to bridge between high-end 8-bit microcontrollers and high-performance 16-bit microcontrollers, such as the MC9S12XS-Family

Product Attributes

Core Size: 16-Bit

Speed: 25MHz

Connectivity: IrDA, LINbus, SCI, SPI

Peripherals: LVD, POR, PWM, WDT

Number of I/O: 54

Program Memory Size: 48KB (48K x 8)

Program Memory Type: FLASH

EEPROM Size: 1.5K x 8

RAM Size: 4K x 8

Voltage - Supply (Vcc/Vdd): 3.13V ~ 5.5V

Data Converters: A/D 12x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Product Features

Up to 240 Kbyte on-chip flash with ECC

Up to 4 Kbyte EEPROM with ECC

Up to 11 Kbyte on-chip SRAM

Phase locked loop (IPLL) frequency multiplier with internal filter

4–16 MHz amplitude controlled Pierce oscillator

1 MHz internal RC oscillator

Up to two 8-bit digital-to-analog converters (DAC)

Up to one 5V analog comparator (ACMP)

Up to three serial peripheral interface (SPI) modules
