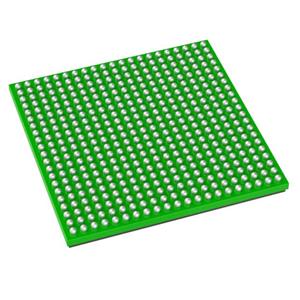

The AM2431BSDGHIALVR dual-core Arm® Cortex® MCU is built for industrial applications that require a combination of processing and real-time communication, such as remote I/O modules and motor drivers. The AM243x family provides scalable performance with up to four Cortex-R5F MCUS, one Cortex-M4F, and two SitARa-enabled gigabit PRU_ICSSG instances of TSN. '

Product Specifications:

Core processors: ARM® Cortex®-M4F, ARM® Cortex®-R5F

Kernel specification: 32-bit dual-core

Speed: 400MHz, 800MHz

Connectivity: CANbus, Ethernet, I²C, MMC/SDIO, QSPI, SPI, UART/USART, USB

Peripheral: AES, DMA, POR, PWM, SHA, WDT

Number of I/ OS: 198

Program storage capacity: 128KB (128K x 8)

Program memory Type: Tightly Coupled Memory (TCM)

EEPROM capacity: -

RAM size: 256K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 1.89V, 3.135V ~ 3.465V

Data converter: A/D 8x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

Package/case: 441-BFBGA, FCBGA

Supplier Package: 441-FCBGA (17.2x17.2)
