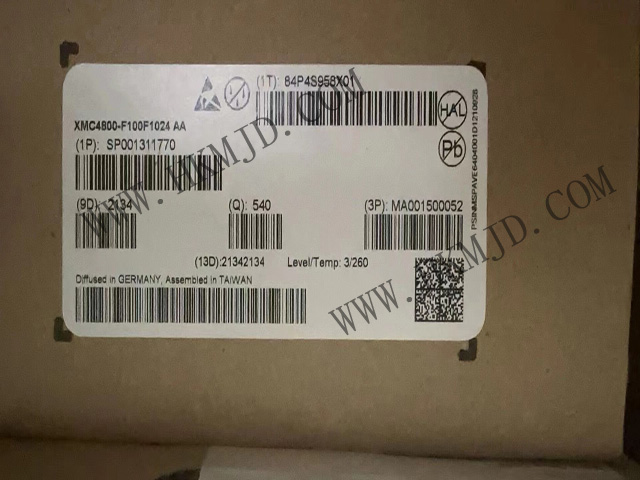

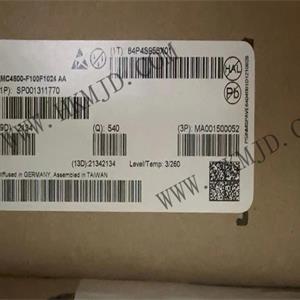

The XMC4800-F100F1024AA device is a member of the XMC4000 family of microcontrollers based on the ARM Cortex-M4 processor core. The increasing complexity of today's energy-efficient embedded applications requires microcontroller solutions with higher performance CPU cores featuring DSP and FRU functionality. The XMC4800 family of microcontrollers leverages Infineon's decades of experience in the industrial market to provide outstanding solutions to address the performance issues of today's embedded control applications. anARM ® Cortex ®-M with on-chip flash memory and analog/mixed-signal capability is used for the first time in anEtherCAT node.

Feature Description

ARM ® Cortex ®-M4 @ 144MHz

1024 kB Flash, 200kB RAM

Data and IP protection on flash memory

Supply voltage range: 3.13 - 3.63V

EtherCAT ® nodes

6 x CAN nodes

EthernetMAC, USB-OTG, SD/MMC

6 x USIC (configurable to SPI, UART, IIC, IIS)

External bus unit

4 x 12-bit ADCs, 18 input channels, 4 x parallel sampling and conversion

2-channel 12-bit ADC

4-channel ∆Σ demodulator

24 x 16-bit dedicated timer, dead time generation

2 x Position Interface

Watchdog timer, real time clock

XMC4000 Functional Safety Package

Package: LQFP100

Temperature range: -40 - 85°C

SDIO/SD/MMC interface
