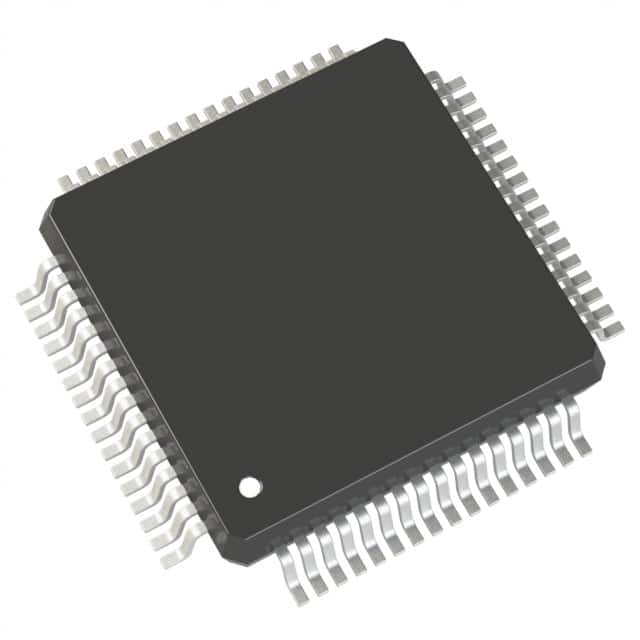

The STM32G0B1RBT6 microcontroller is based on a high-performance ARM® Cortex®-M0+ 32-bit RISC core and operates at up to 64MHz. The device has up to 128KB of embedded flash memory and 144kB of RAM memory. The device comes in a 64-LQFP pin package.

Product Specifications:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 64MHz

Connection capability: CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 60

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 144K x 8

Voltage - power supply (Vcc/Vdd) : 1.7V ~ 3.6V

Data converter: A/D 19x12b SAR; D/A 2x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/shell: 64-LQFP

Supplier Device package: 64-LQFP (10x10)
