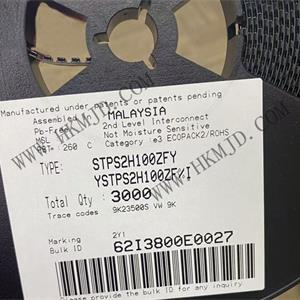

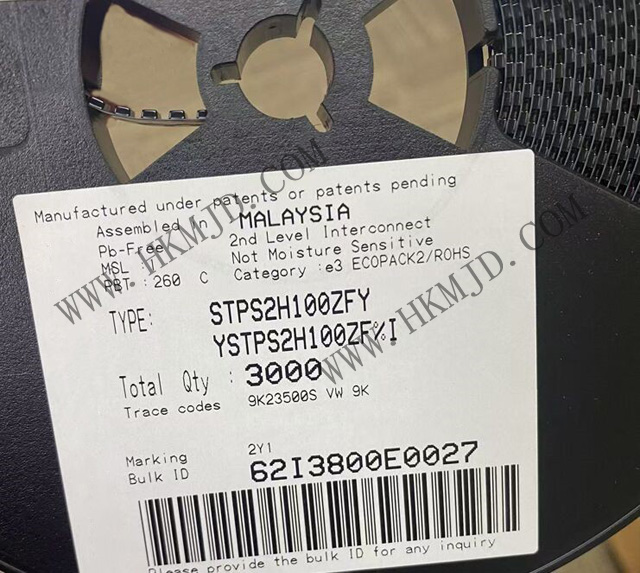

The STPS2H100ZFY single-chip Schottky rectifier is suitable for automotive applications such as lighting, diesel injection or engine control units.

The devices are available in the SOD123Flat package and are particularly suitable for surface mounting for high frequency converters, freewheel and reverse polarity protection in automotive applications.

Specification

Technology: Schottky

Voltage - DC reverse (Vr) (max): 100 V

Current - average rectification (Io): 2A

Voltage - forward (Vf) at different If: 960 mV @ 4 A

Speed: Fast recovery = < 500ns, > 200mA (Io)

Current at different Vr - reverse leakage: 1 µA @ 100 V

Capacitance at different Vr, F: -

Mounting type: Surface mount type

Package/Case: SOD-123F

Supplier Device Package: SOD-123F

Operating Temperature - Junction: -40°C ~ 175°C

Basic Part Number: STPS2H100
