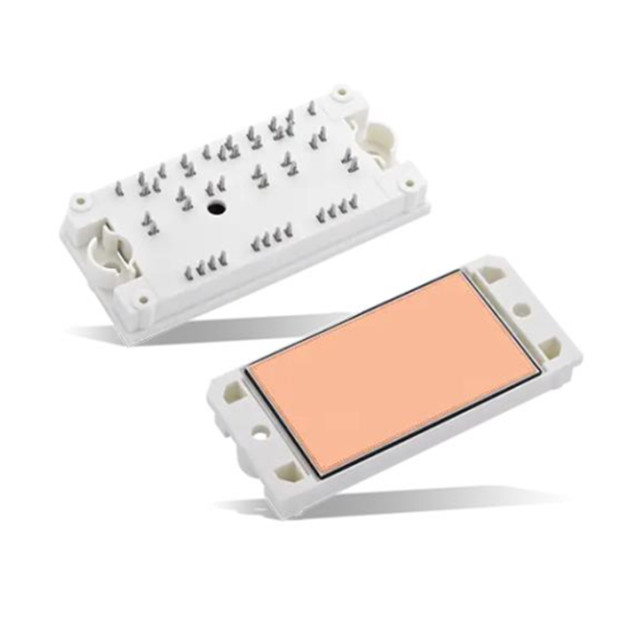

The NXH25T120L2Q1PTG 1200V Power Integration Module (PIM) is manufactured using extensive experience in automotive ignition IGBT and Intelligent Power Module (IPM) development and packaging expertise, and is a power solution that fully complies with stringent industry standards. In addition, the modular solution provides users with a fully integrated supply chain for silicon and packaging, ensuring high quality and cost efficiency.

Product Specifications:

IGBT type: -

Configuration: Three inverters

Voltage-emitter breakdown (Max.) : 1200 V

Current-collector (Ic) (Max.) : 25 A

Power - Max. : 81 W

Vce(on) (Max.) for different Vge and Ic: 2.5V @ 15V, 25A

Current-collector cutoff (Max.) : 300 µA

Input capacitance (Cies) for different Vce: 8.502 nF @ 20 V

Input: Standard

NTC thermistor: Yes

Operating temperature: -40°C ~ 150°C (TJ)

Installation type: Base installation

Package/shell: Module

Supplier Package: 44-PIM (71x37.4)
