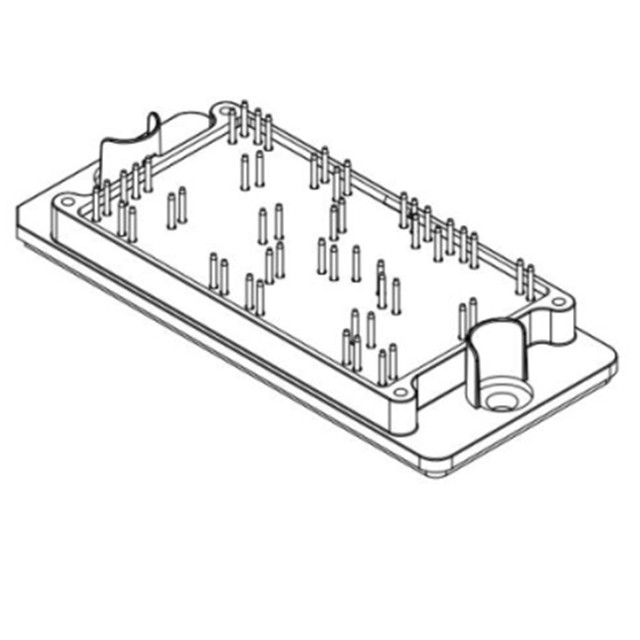

The NXH300B100H4Q2F2PG Q2BOOST module features 3 channels, higher output power and an easy to install module. Each channel contains two 1000V, 100A IGBTs, two 1200V, 30A SiC diodes, and two 1600V, 30A bypass diodes. The Q2BOOST module offers excellent efficiency and heat loss, allowing flexibility to support different manufacturing processes.

Product Specifications:

IGBT type: trench type field cut-off

Configuration: Dual, common source

Voltage-emitter breakdown (Max) : 1118 V

Current - Collector (Ic) (Max.) : 73 A

Power - Max. : 194 W

Vce(on) (Max.) for different Vge and Ic: 2.25V@15V, 100A

Current-collector cutoff (Max.) : 800 µA

Input capacitance (Cies) for different Vce: 6.323 nF @ 20 V

Input: Standard

NTC thermistor: Yes

Operating temperature: -40°C ~ 175°C (TJ)

Installation type: Base installation

Package/shell: Module

Supplier Device Package: 27-PIM (71x37.4)
