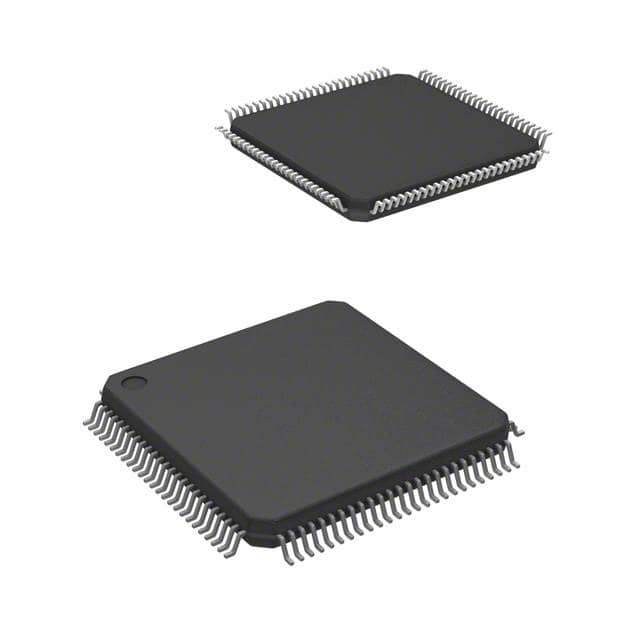

The LPC1767FBD100K is an ARM Cortex-M3 based microcontroller for embedded applications with a high level of integration and low power consumption.The Arm Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug capabilities and a higher level of support block integration.

The LPC1767FBD100K CPU operates at up to 100 MHz. the Arm Cortex-M3 CPU integrates a 3-stage pipeline with a Harvard architecture with separate local instruction and data buses, and a third bus for peripherals. the Arm Cortex-M3 CPU also includes an internal prefetch unit with support for speculative branching.

Features

Arm Cortex-M3 processor running at up to 100 MHz

Nested vector interrupt controller for fast determination of interrupts

Wake-up interrupt controller allows automatic wake-up from any priority interrupt

Memory protection unit

Four reduced power modes: sleep, deep sleep, power down and deep power down

Memory

Up to 512KB of Flash memory

Up to 64KB of SRAM

Serial peripherals

10/100 Ethernet MAC

USB2.0 full speed device/host/OTG controller with on-chip PHY

Four UARTs with fractional baud rate generation, RS-485, modem control I/O and IrDA

Two CAN 2.0B Controllers

Three SSP/SPI controllers

Three I2C bus interfaces, one of which supports Fast Mode+ (1 Mbit/s data rate)

I2S interface for digital audio

Analogue peripherals

12-bit analogue-to-digital converter with eight channels

10-bit digital-to-analogue converter

Other peripherals

Real-time clock running at <1uA

Eight-channel general-purpose DMA controller

Up to 70 general purpose I/Os

Motor control PWM and quadrature encoder interface with support for three-phase motors

Four 32-bit general purpose timers/counters

4MHz internal RC oscillator, trimmed to 1% accuracy
