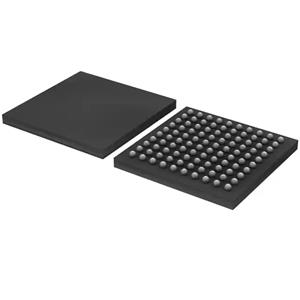

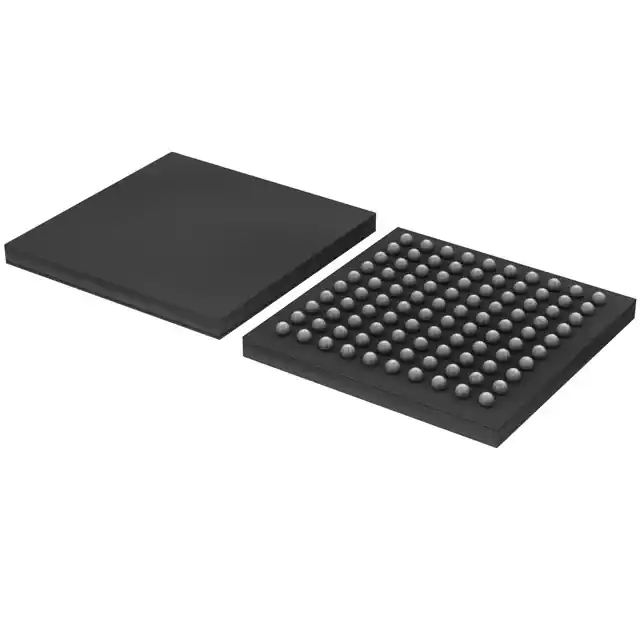

32Bit Microcontroller Chip LPC54005JET100E 100-TFBGA Microcontroller MCU 180MHz

Product Description

LPC54005JET100E is a 32-bit core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration.

Product Attributes

Core:ARM Cortex M4

Program Memory Size:0 B

Data Bus Width:32 bit

ADC Resolution:12 bit

Maximum Clock Frequency:180 MHz

Number of I/Os:64 I/O

Data RAM Size:360 kB

Supply Voltage - Min:1.71 V

Supply Voltage - Max:3.6 V

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 105 C

Data RAM Type:SRAM

Data ROM Size:64 kB

Data ROM Type:ROM

Interface Type:CAN, I2C, I2S, SPI, USART

Moisture Sensitive:Yes

Features8 KB of SRAM bank intended for USB traffic

DMA controller with 32 channels and up to 24 programmable triggers, able to access all memories and DMA-capable peripherals

Up to 171 General-Purpose Input/Output (GPIO) pins.

GPIO registers are located on the AHB for fast access. The DMA supports GPIO ports.

Up to eight GPIOs can be selected as Pin Interrupts (PINT), triggered by rising, falling or both input edges.

Two GPIO Grouped Interrupts (GINT) enable an interrupt based on a logical (AND/OR) combination of input states
