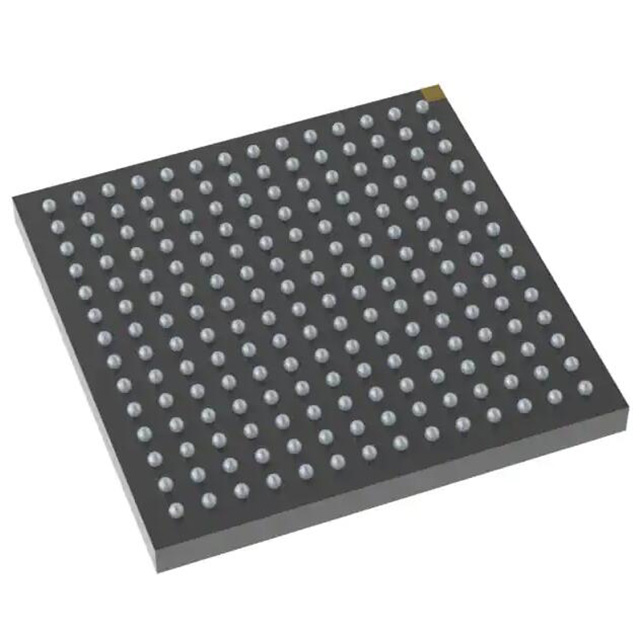

MIMXRT1061CVL5B is Arm Cortex®-M7 core, which operates at speeds up to 528MHz to provide high CPU performance and best real-time response.The i.MX RT1060 processor has 1 MB on-chip RAM.

Features Of MIMXRT1061CVL5B

32 KB L1 Instruction Cache

32 KB L1 Data Cache

Full featured Floating Point Unit (FPU) with support of the VFPv5 architecture

Support the Armv7-M Thumb instruction set

Integrated MPU, up to 16 individual protection regions

Tightly coupled GPIOs, operating at the same frequency as Arm Core

Up to 512 KB I-TCM and D-TCM in total

Frequency of 528 MHz

Cortex M7 CoreSight™ components integration for debug

Two 10/100M Ethernet controller with support for IEEE1588

Eight universal asynchronous receiver/transmitter (UARTs) modules

Four I2C modules

Four SPI modules

Two FlexCAN modules

One FlexCAN (with Flexible Data-Rate supported)

Product Attributes Of MIMXRT1061CVL5B

Mounting Style: SMD/SMT

Package / Case: MAPBGA-196

Core: ARM Cortex M7

Program Memory Size: 0 B

Data Bus Width: 32 bit

ADC Resolution: 2 x 12 bit

Maximum Clock Frequency: 500 MHz

Number of I/Os: 127 I/O

Data RAM Size: 1 MB

Data ROM Size: 128 kB

I/O Voltage: 1.8 V, 3.3 V

Interface Type: CAN, Ethernet, I2C, SPI

MIMXRT1061CVL5B i.MX RT1060 Crossover Processors for Industrial Products
