The RT600 is a family of dual-core microcontrollers for embedded applications featuring the Arm Cortex-M33 CPU and the Cadence Xtensa HiFi4 advanced audio digital signal processor CPU. the Cortex-M33 includes two hardware co-processors to provide enhanced performance for a range of complex algorithms. The family offers a rich set of peripherals and very low power consumption.

The Arm Cortex-M33 is a next generation core based on the ARMv8-M architecture, which offers system enhancements such as ARM TrustZone® security, single cycle digital signal processing and a tightly coupled coprocessor interface combined with low power consumption, enhanced debugging capabilities and a high level of support block integration.The ARM Cortex-M33 CPU uses a 3-stage instruction pipeline, including an internal prefetch unit, to support speculative branching. A hardware floating point processor is integrated into this core. On the RT600, the Cortex-M33 is enhanced by two hardware co-processors, providing accelerated support for other DSP algorithms and cryptography.

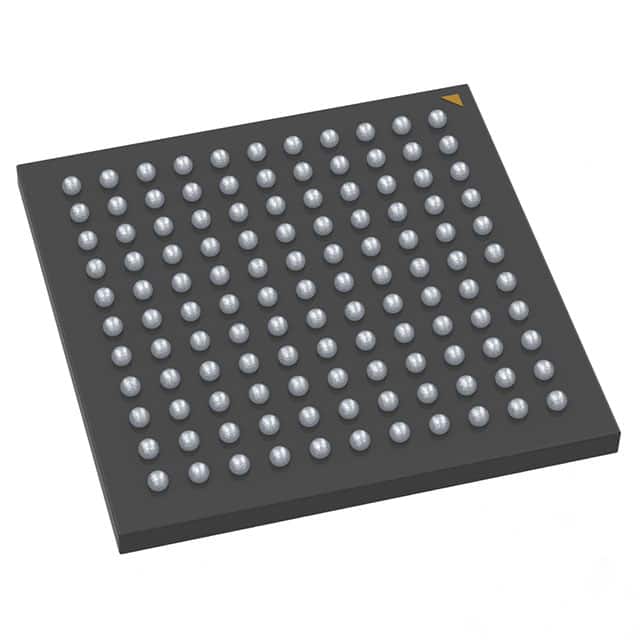

MIMXRT685SFFOB Product attributes:

Family: RT-600

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit dual-core

Speed: 300MHz

Connectivity: EBI/EMI, I²C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, USB2.0 OTG

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

Number of I/Os: 147

Program memory capacity: -

Program memory type: External program memory

EEPROM capacity: -

RAM size 4.5M x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -20°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package / Case: 249-WFBGA

Supplier Device Package: 249-FOWLP (7x7)

Basic Part Number: MIMXRT685
