The LPC55S66JEV98K is an ARM Cortex-M33 based microcontroller for embedded applications. These devices include an ARM Cortex-M33 co-processor, CASPER encryption/FFT engine, PowerQuad hardware accelerator for DSP functionality, up to 320 KB of on-chip SRAM, up to 640 KB of on-chip Flash memory, PRINCE module for on-the-fly Flash encryption/decryption, high-speed and full-speed USB host and device interfaces for full-speed crystal-less operation, SD/MMC/SDIO interfaces, five general-purpose timers, one SCTimer/PWM, one RTC/alarm timer, one 24-bit multi-rate timer (MRT), one windowed watchdog timer (WWDT), nine flexible serial communication peripherals (configurable as USART, SPI, high-speed SPI, I2C or I2S interfaces), a programmable logic unit (PLU), a 16-bit 1. 0Msamples/sec ADC capable of simultaneous conversion.

The ARM Cortex-M33 provides a secure foundation, offering isolation to protect valuable IP and data through TrustZone® technology. It simplifies the design and software development of digital signal control systems with integrated digital signal processing (DSP) instructions. To support security requirements, the LPC55S66JEV98K also provides support for secure boot, HASH, AES, RSA, UUID, DICE, dynamic encryption and decryption, debug authentication and TBSA compliance.

Product Type: ARM Microcontrollers - MCU

Family: LPC5500

Mounting Style: SMD/SMT

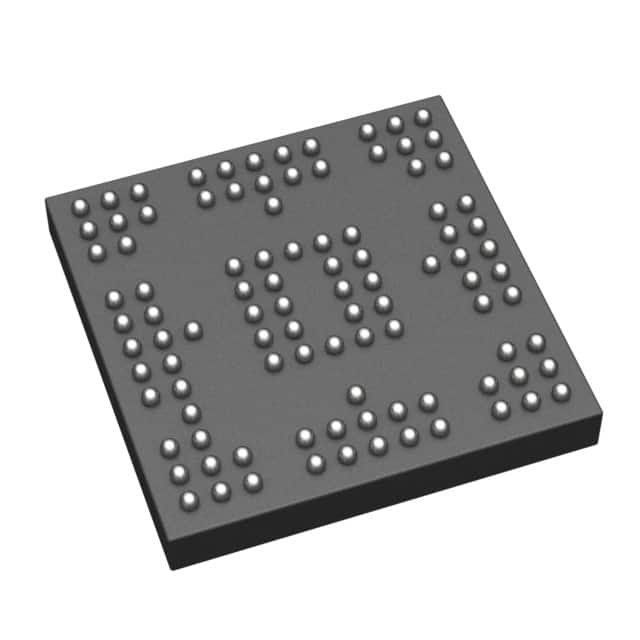

Package / Case: VFBGA-98

Core: ARM Cortex M33

Program memory size: 256 kB

Data bus width: 32 bit

ADC resolution: 16 bit

Max. clock frequency: 100 MHz

Number of inputs/outputs: 64 I/O

Data RAM size: 144 kB

Supply voltage - min: 1.8 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 105 C

Analogue supply voltage: 1.8 V to 3.6 V

Data Ram type: SRAM

I/O voltage: 1.8 V to 3.6 V

Interface type: I2C, I2S, SPI, USART, USB

Humidity sensitivity: Yes

Number of ADC channels: 10 Channel

Number of timers/counters: 5 Timer

Processor family: LPC55S69

Product: MCU+FPU

Applications

Consumer electronics

Diagnostic equipment

Building control and automation

Security applications

Industrial IoT

Machine learning
