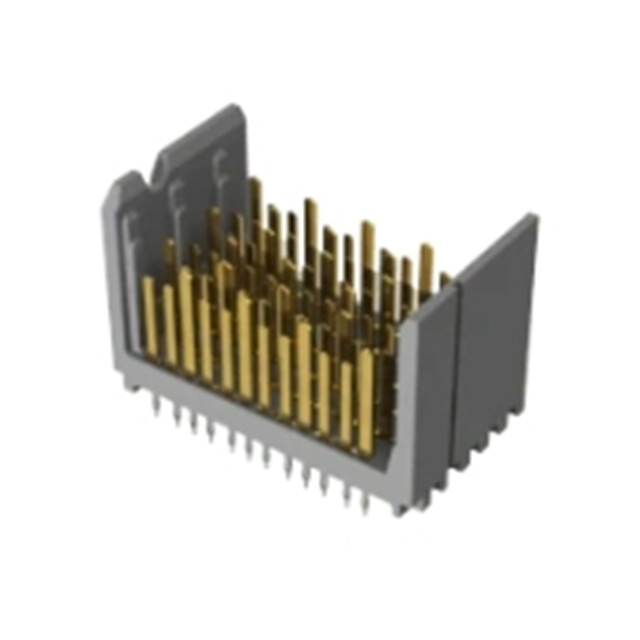

HDTM-3-08-1-S-VT-0-3 -- 128-position, XCede® HD 1.80mm high density backplane vertical plug

Overview:

Samtec's XCede HD consists of signal, power and keyer/guidance modules for incredible design flexibility, combining a small form factor and significant savings in board and system space. The modularity of the system allows designers to create a fully customized backplane solution, optional power modules, boot and keying, and side walls for increased durability. With a staggered differential pin design, the ground pin is first paired with a hot swap to help prevent system downtime.

Detailed parameter

Connector Use: backplane

Connector type: Connector, male blade

Connector style: XCede®

Number of needles: 128

Number of pins loaded: All

Spacing: 1.80mm

Row number: -

Number of columns: 8

Installation type: Through hole

End connection: press fitting

Contact layout, typical: -

Features: -

Contact surface treatment: gold plating

Contact surface treatment thickness: 30.0µin (0.76µm)

Color: Black

Operating temperature: -40°C ~ 105°C
