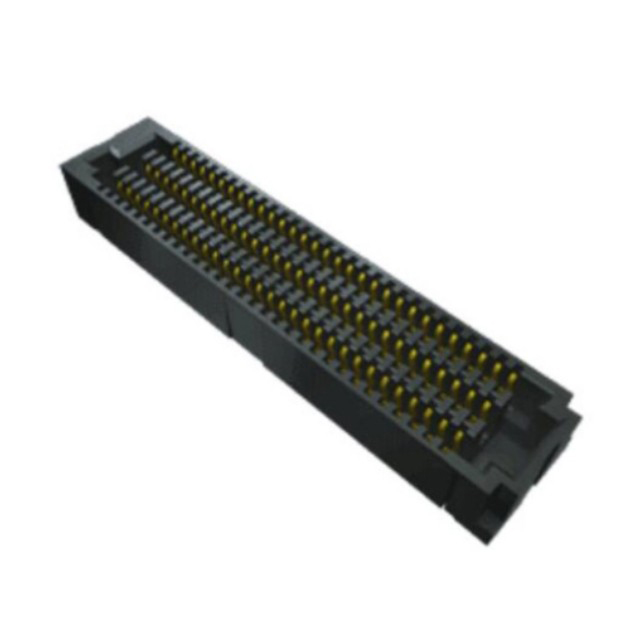

HDTM-6-04-1-S-VT-0-1 -- 48 position, XCede® HD 1.80mm high density backplane vertical plug

Overview:

The compact size of Samtec's XCede® HD high density backplane system makes it ideal for density-critical applications, with a modular design that enables flexibility and customizable solutions.

Detailed parameter

Connector Use: backplane

Connector type: Connector, male blade

Connector style: XCede®

Number of needles: 48

Number of pins loaded: All

Spacing: 1.80mm

Number of rows: 12

Number of columns: 4

Installation type: Through hole

End connection: press fitting

Contact layout, typical: -

Features: -

Contact surface treatment: gold plating

Contact surface treatment thickness: 30.0µin (0.76µm)

Color: -

Operating temperature: -40°C ~ 105°C

Rated voltage: 48VAC
