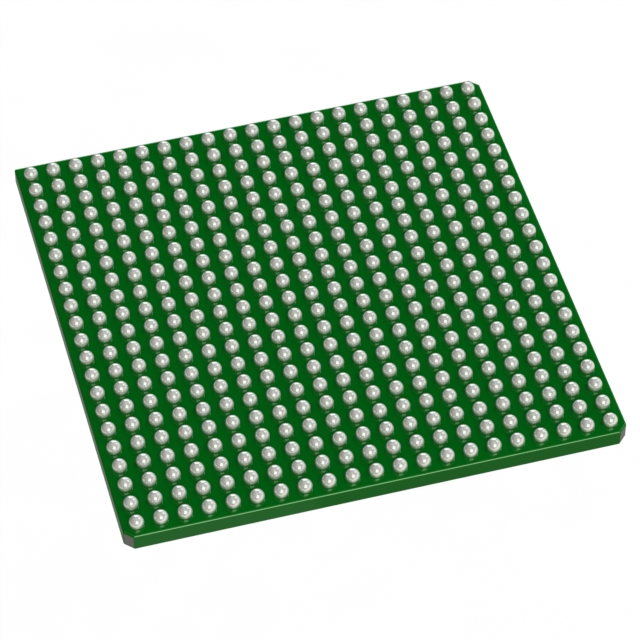

The AM6254ATLHJAMKR (System-in-Package) Sitara™ MPU with integrated LPDDR4 is an application processor built for Linux development. The SIP integrates 512MB of LPDDR4 with the AM6254 device, which features four Arm® Cortex®-A53 and embedded features such as dual-display support, 3D graphics acceleration, and an extensive set of peripherals, making the SIP ideal for a wide range of industrial applications, while also providing smart features and an optimised power architecture. In addition, the AM625SIP offers simplified hardware design, increased robustness, optimised size/system BOM and lower power consumption, all of which help to accelerate software and hardware development.

Features

Processor Cores:

Up to quad-core 64-bit Arm Cortex-A53 microprocessor subsystems with performance up to 1.4GHz

Quad-core Cortex-A53 cluster (with 512KB L2 shared cache, including SECDED ECC)

Each A53 core contains 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with parity protection

Single-core Arm®Cortex®-M4F MCUs up to 400MHz

256KB SRAM with SECDED ECC

Specialised devices/power managers

Multimedia:

Display Subsystem

Dual Display Support

Each display 1920x1080 @ 60fps

1 x 2048x1080 + 1 x 1280x720

Up to 165MHz pixel clock support with independent PLLs per display

OLDI (4-channel LVDS - 2x) and DPI (24-bit RGB LVCMOS)

Supports security features such as frame detection and MISR data checking

3D Graphics Processing Unit

1 pixel per clock or higher

Fill rate >500 megapixels/second

>500 megapixels/sec, >8 GFLOPs

Supports at least 2 compositing layers

Supports resolutions up to 2048x1080 @60fps

Supports ARGB32, RGB565 and YUV formats

Support for 2D graphics

OpenGL ES 3.1, Vulkan 1.2

One 4-channel camera serial interface (CSI-Rx) and DPHY

Compliant with MIPI CSI-2 v1.3 standard + MIPI D-PHY 1.2

Supports 1, 2, 3, or 4 data channel modes at rates up to 1.5Gbps per channel

ECC verification/correction and CRC checksum on RAM + ECC

Virtual channel support (up to 16)

Ability to write streaming data directly to DDR via DMA

Applications

- Human Machine Interface (HMI)

- Medical devices, patient monitoring and portable medical devices

- Electrical user interfaces and connectivity

- Electric Vehicle Service Equipment (EVSE) / Vehicle-to-infrastructure (V2X)

- Smart home gateways

- Embedded Security: Control and Access Panels AM6254ATLHJAMKR
