Trade Name:FPGA - Field Programmable Gate Array
Brand:Intel
Particular Year:24+
Package:1932-FBGA
Delivery Date:New and original
Stock: 1000pcs
The Stratix® V FPGA is manufactured in the 28nm process and includes a variety of innovations such as an enhanced core architecture, integrated transceivers up to 28.05 gigabits per second (Gbps), and a unique array of integrated hard intellectual property (IP) modules.

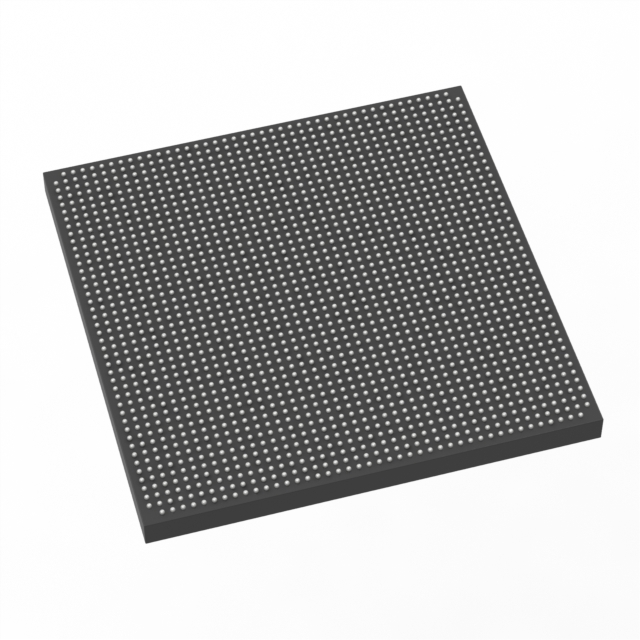

5SGSED8N2F45I3LG
Parameters
Series: Stratix® V GS
Number of LAB/CLB: 262400
Number of logical elements/units: 695000
Total RAM bits: 51200000
Number of I/ OS: 840
Voltage - Power supply: 0.82V ~ 0.88V
Mounting type: Surface mount type
Operating temperature: -40°C ~ 100°C (TJ)
Package/Case: 1932-BBGA, FCBGA
Supplier Package: 1932-FBGA, FC (45x45)
The Stratix® V GS family offers an extremely wide range of configurable precision DSP block modules. Up to 3926 18x18 or 1963 27x27 multipliers are available. In addition, the GS series can also provide 14.1Gbit/s data transfer bandwidth. These transceivers can also support backplane and optical module interface applications. These devices are optimized for applications that require DSP processing at their core, such as the wired, military, broadcast, and high-performance computing markets.
Model
Brand
Package
Quantity
Describe
Xilinx
196-CSPBGA
1000
Spartan®-7 Field Programmable Gate Array (FPGA) IC，196-TFBGA, CSBGA
Intel
FBGA-484
2000
Cyclone® IV GX Field Programmable Gate Array (FPGA) IC 290 1105920 29440 484-BGA
Intel
BGA-256
5000
Cyclone® IV E Field Programmable Gate Array (FPGA) IC 165 516096 15408 256-TFBGA
Lattice
TQFP-100
6000
FPGA - Field Programmable Gate Array 2112 LUTs 80 IO 3.3V 4 Spd
Xilinx
CSBGA-324
3000
Spartan®-6 LX XA Field Programmable Gate Array (FPGA) IC 218 2138112 43661 324-LFBGA, CSPBGA
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Intel is a global leader in the semiconductor industry and computing innovation, founded in 1968. Today, Intel is transforming into a data-centric company. Together with its partners, Intel promotes innovation and application breakthroughs in transfor…
EPCQ4ASI8N
The Intel EPCQ4ASI8N is a 4MB capacity serial configuration memory belonging to the EPCQ-A series of products, primarily used for configuration storage in FPGAs (Field-Programmable Gate Arrays) and CPLDs (Complex Programmable Logic Devices).
10AX048H4F34I3SG
The 10AX048H4F34I3SG is a high-performance FPGA that is part of the Arria 10 GX family.
EPM240F100I5N
The EPM240F100I5N is a high-performance, low-power CPLD belonging to the MAX II series.
EP4CGX30CF23I7N
EP4CGX30CF23I7N is a Cyclone The IV GX series field programmable gate array (FPGA) chips are manufactured using 60nm process technology and have high cost-effectiveness and low power consumption characteristics.
5M80ZT100I5N
The 5M80ZT100I5N is a complex programmable logic device (CPLD), part of the MAX V family.
EP4CE15M9C7N
The EP4CE15M9C7N is a Cyclone IV E-Series FPGA chip with low power consumption and rich logic resources for a wide range of embedded applications.Contact Number:86-755-83294757
