Trade Name:FPGA - Field Programmable Gate Array
Brand:Xilinx
Particular Year:25+
Package:FCBGA-1738
Delivery Date:New and original
Stock: 1000pcs

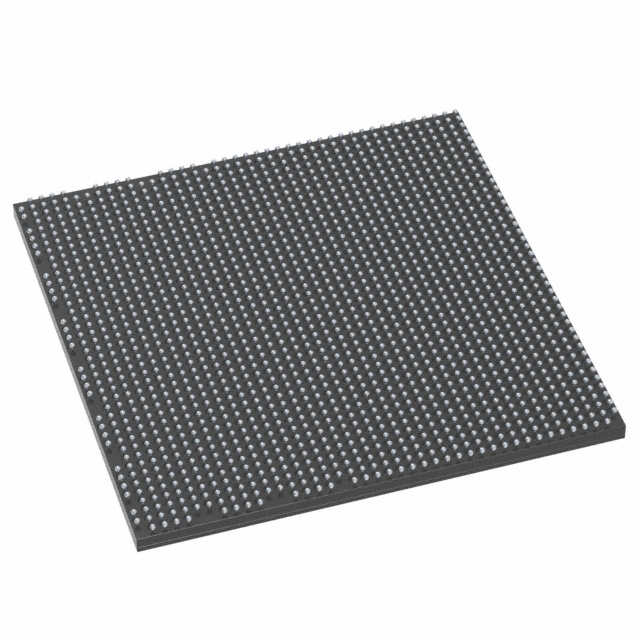

The XC5VLX220T-1FFG1738I is a Virtex-5 series FPGA launched by Xilinx, featuring an FCBGA-1738 package. It has 680 I/O interfaces, operates at a voltage of 1V, and has a maximum operating frequency of 550MHz. The following are its core features:
Youdaoplaceholder0 PCI Express endpoint module : supports x1/x2/x4/x8 Lane configuration, complies with PCI Express v1.1 specification, with a transmission rate of 2.5Gbps per Lane.
Youdaoplaceholder0 transceiver technology : Utilizing 65nm process, the power consumption is less than 100mW per channel when the switching bandwidth reaches 3.2Gbps, and it supports line speeds ranging from 100Mbps to 3.75Gbps.
Ethernet support: Integrated triple-mode Ethernet MAC module, supporting Gigabit Ethernet.
Youdaoplaceholder0 hardware resources : 12 high-speed serial transceivers (RocketIO GTP) are provided, supporting various interface protocols such as optical fiber and copper wire.
Basic parameters
Number of logic components: 221,184 LE
Adaptive Logic Module - ALM: 34560 ALM
Embedded memory: 7.45 Mbit
Number of input/output terminals: 680 I/O
Power supply voltage - minimum: 1 V
Power supply voltage - maximum: 1 V
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 100 ° C
Data rate: 6.5 Gb/s
Number of transceivers: 16 Transceivers
Installation style: SMD/SMT
Packaging/Cabinet: FCBGA-1738
Distributed RAM: 2280 kbit
Embedded block RAM-EBR: 7632 kbit
Maximum operating frequency: 550 MHz
Humidity sensitivity: Yes
Number of logical array blocks - LAB: 17280 LAB
Working power supply voltage: 1 V
Product type: FPGA-Field Programmable Gate Array
Target application
The XC5VLX220T-1FFG1738I is suitable for scenarios that require high-speed serial interfaces, low power consumption and flexible scalability, such as industrial automation and communication equipment.
