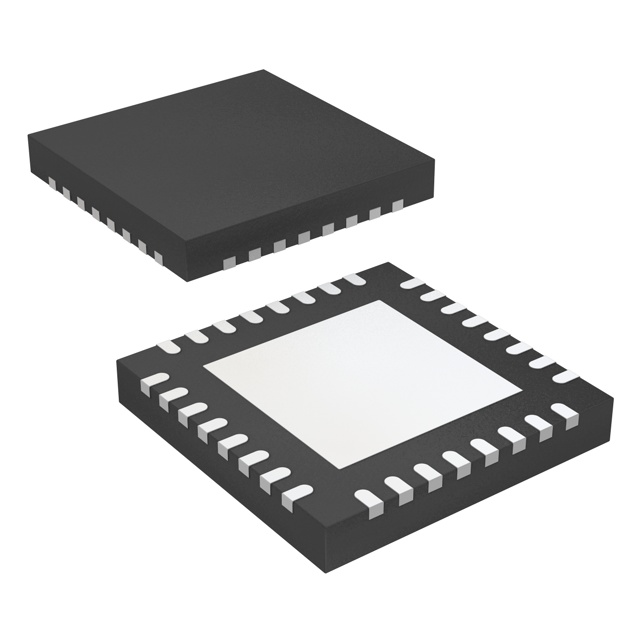

For picture reference, please see the specifications
< >

Commodity Model:LMK00334RTVRQ1

Trade Name:Clock Buffer

Brand:TI

Particular Year:24+

Package:WQFN-32

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMK00334RTVRQ1
Package
WQFN-32
Describe
Automotive Four-Output Clock Buffer and Level Translator for PCIe Gen 1 to Gen 5

Product Description

LMK00334RTVRQ1 device is a 4-output HCSL fanout buffer intended for high-frequency, low-jitter clock, data distribution, and level translation. It is capable of distributing the reference clock for ADCs, DACs, multi-gigabit ethernet, XAUI, fibre channel, SATA/SAS, SONET/SDH, CPRI, and high-frequency backplanes.


Feature

AEC-Q100 Qualified for Automotive Applications:

Device Temperature Grade 2: –40°C to 105°C Ambient Operating Temperature Range

Device HBM ESD Classification Level 2

Device CDM ESD Classification Level C5

Device MM ESD Classification Level M2

3:1 Input multiplexer

Two universal inputs operate up to 400 MHz and accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or single-ended clocks

One crystal input accepts a 10- to 40-MHz crystal or single-ended clock

Two banks with two differential outputs each

HCSL, or Hi-Z (selectable)

Additive RMS phase jitter for PCIe Gen3/Gen4 at 100 MHz:

30 fs RMS (typical)

High PSRR: –72 dBc at 156.25 MHz

LVCMOS output with synchronous enable input

Pin-controlled configuration

VCC core supply: 3.3 V ± 5%

Three independent VCCO output supplies: 3.3 V, 2.5 V ± 5%

Industrial temperature range: –40°C to +105°C


Applications

Infotainment: telematics

Control unit infotainment: head unit

ADAS: autonomous driving controller


Associated Products

Model

Brand

Package

Quantity

Describe

8SLVD1204-33NLGI

Renesas

16-VFQFPN

1000

Clock Fanout Buffer (Distribution), Multiplexer IC 2:4 2 GHz 16-VFQFN Exposed Pad

9ZXL1550BKLF/W

Renesas

64-VFQFN

2000

PCIe fan-out buffer (allocation), zero-latency buffer IC 400MHz 1 Output 64-VFQFPN

9ZXL0451EKILFT

Renesas

32-VFQFN

2000

4-Output DB800ZL PCIe Zero-Delay/Fanout Clock Buffer

9ZXL0631EKILF

Renesas

40-VFQFN

2000

6 Output the DB800ZL PCIe Zero delay/fan-out clock buffer

9ZXL0632EKILF

Renesas

40-VFQFN

2000

6 Output the DB800ZL PCIe Zero delay/fan-out clock buffer

9ZXL0851EKILFT

Renesas

48-VFQFN

2000

Second generation enhanced performance DB800ZL differential buffer

9ZXL1231AKLFT

Renesas

64-VFQFN

2000

DB1200ZL 12-Output Low Power HCSL Buffer

9ZXL0851EKKLF

Renesas

48-VFQFN

2000

Second generation enhanced performance DB800ZL Differential buffer

LMK1D2108RGZR

TI

48-VQFN

3000

Clock Clock buffer IC 2:8 2 GHz 48-VFQFN

AD9508BCPZ

ADI

24-LFCSP

2000

1.65 GHz clock fan-out buffer with integrated output divider and delay adjustment
