The KW45B41Z82AFPBT products are low-power, high-security, single-chip wireless MCUs that integrate high-performance Bluetooth Low Power version 5.3 radio and CAN FD for automotive and industrial applications.

The family integrates a state-of-the-art, scalable security architecture, including the resource domain controller Arm® TrustZone® -M, and an isolated EdgeLock™ Secure Enclave that supports hardware cryptographic accelerators, random number generators, key generation, storage and management, and secure debugging. the flash memory contents can optionally be stored as encrypted data, which is then decrypted on-the-fly to protect sensitive data and algorithms. thereby protecting sensitive data and algorithms.

Product Attributes

Family; Kinetis KW45B

Type: TxRx + MCU

RF Family/Standard: Bluetooth, Universal ISM > 1GHz

Protocol: Bluetooth v5.3

Modulation: FSK, GFSK, GMSK, MSK

Frequency: 2.36GHz ~ 2.48GHz

Data Rate (Max): 2Mbps

Power - Output: 10dBm

Sensitivity: -106dBm

Storage: 1MB Flash, 128kB RAM

Serial Interface: I2C, PWM, SPI, UART

Voltage - Supply: 1.8V ~ 3.6V

Current - Receive: 4.1mA ~ 10.01mA

Current - Transmit: 4.6mA ~ 22.4mA

Operating Temperature: -40°C ~ 105°C (TA)

Grade: Automotive Grade

Qualification: AEC-Q100

Mounting Type: Surface Mount, Wettable Sides

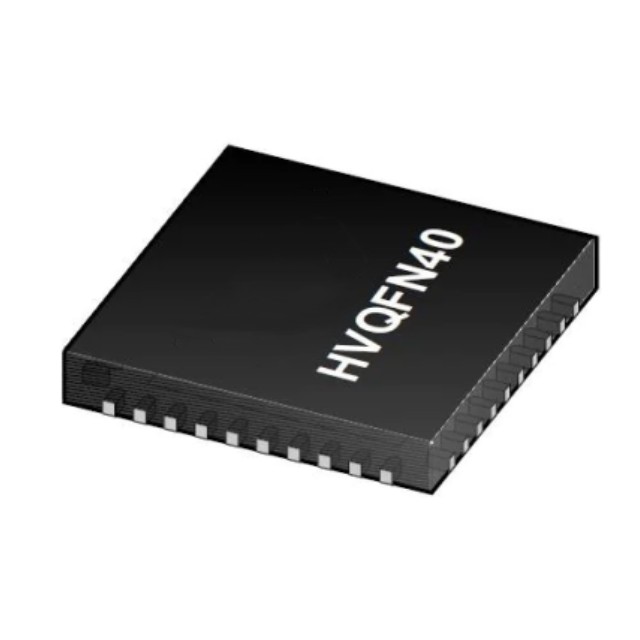

Package/Housing: 40-VFQFN Exposed Pad

Supplier Device Package: 40-HVQFN (6x6)
