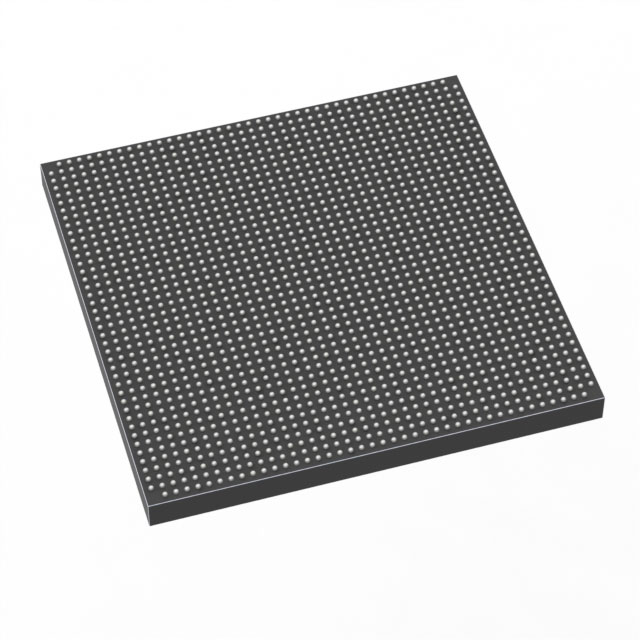

1SG085HN1F43E1VG feature up to 96 generalpurpose transceivers on separate transceiver tiles, and 2666 Mbps DDR4 externalmemory interface performance.

Feature

14 nm Intel tri-gate (FinFET) process technology

SmartVID controlled core voltage, standard power devices

0.85-V fixed core voltage, low static power devices available

Up to 96 total transceivers available

Continuous operating range of 1 Gbps to 28.3 Gbps for Intel Stratix 10 GX/SX devices

Backplane support up to 28.3 Gbps for Intel Stratix 10 GX/SX devices

Extended range down to 125 Mbps with oversampling

ATX transmit PLLs with user-configurable fractional synthesis capability

XFP, SFP+, QSFP/QSFP28, CFP/CFP2/CFP4 optical module support

Adaptive linear and decision feedback equalization

Transmit pre-emphasis and de-emphasis

Dynamic partial reconfiguration of individual transceiver channels

On-chip instrumentation (Eye Viewer non-intrusive data eye monitoring)

Up to 2,304 total GPIO available

1.6 Gbps LVDS—every pair can be configured as an input or output

1333 MHz/2666 Mbps DDR4 external memory interface

1067 MHz/2133 Mbps DDR3 external memory interface

1.2 V to 3.3 V(1) single-ended LVCMOS/LVTTL interfacing

On-chip termination (OCT)

667 MHz external memory interface clocking, supports 2666 Mbps DDR4 interface

800 MHz LVDS interface clocking, supports 1600 Mbps LVDS interface

Programmable clock tree synthesis, backwards compatible with global, regional andperipheral clock networks

Clocks only synthesized where needed, to minimize dynamic power

Dedicated Secure Device Manager

Software programmable device configuration

Serial and parallel flash interface

Configuration via protocol (CvP) using PCI Express Gen1/Gen2/Gen3

Fine-grained partial reconfiguration of core fabric
