The K32W041AY wireless microcontroller is an ultra-low-power, high-performance MCU based on Arm® Cortex-M4 with support for Zigbee 3.0, Thread, and Bluetooth ® low-power 5.0. The K32W041A MCU is optimized for home and building automation, smart lighting, smart locks, and sensor networking applications. The MCU also includes a 2.4GHz Bluetooth Low Power (BLE) 5 transceiver that supports eight simultaneous connections.

Product attribute

Type: TxRx + MCU

Rf series/Standard: 802.15.4, Bluetooth

Protocol: Bluetooth v5.0, Thread, Zigbee®

Modulation: -

Frequency: 2.4GHz

Data rate (Max.) : 2Mbps

Power-output: 11.2dBm

Sensitivity: -101.3dBm

Storage capacity: 640kB flash, 152kB SRAM

Serial interface: I2C, SPI, PWM, UART

GPIO: 22

Voltage - Power supply: 1.9V ~ 3.6V

Current - Reception: 4.3mA

Current-transmission: 7.4mA ~ 20.3mA

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

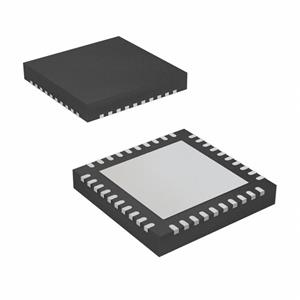

Package/housing: 40-VFQFN bare pad

Supplier Package: 40-HVQFN (6x6)
