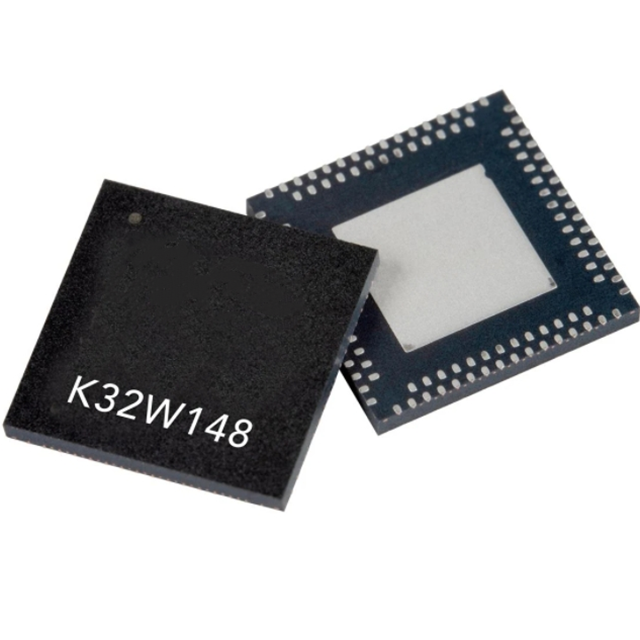

The K32W1480VFTBT multi-protocol Wireless MCU is a low-power, highly secure single-chip solution that integrates BLE5.3 radio and IEEE 802.15.4 radio ® supporting protocols such as Thread, Matter and Zigbee. The K32W148 features a tri-core architecture that isolates connectivity, computing, and security functions. The multi-protocol radio is not only energy efficient, but also supports full synchronous dualPAN to facilitate the use of Thread and Zigbee protocols for development for Wi-Fi coexistence.

Product attribute

Type: TxRx + MCU

Rf series/Standard: 802.15.4, Bluetooth

Protocol: Bluetooth v5.2, Thread, Zigbee®

Modulation: FSK, GFSK, GMSK, MSK

Frequency: 2.4GHz

Data rate (Max.) : 2Mbps

Power - Output: 10dBm

Sensitivity: -106dBm

Storage capacity: 1MB flash, 128kB SRAM

Serial interface: I2C, I2S, SPI, UART

Voltage - Power supply: 1.71V ~ 3.6V

Current - Reception: 8.7mA

Current - Transmission: 22.4mA

Operating temperature: -40°C ~ 105°C

Mounting type: Surface mount, wets flanks

Package/housing: 48-VFQFN bare pad

Supplier Package: 48-HVQFN (7x7)
