The JN5168/001K is an ultra-low-power, high-performance wireless microcontroller for ZigBee applications with 256kB of embedded flash memory, 32 kB of RAM, and no need for external memory for OTA upgrades. 32-bit RISC processors offer high coding efficiency through variable-width instructions, multilevel instruction pipelines, and low-power operations with programmable clock rates. It also includes an IEEE802.15.4-compliant 2.4GHz transceiver and a wealth of analog and digital peripherals.

specification

Product Category: RF Microcontroller-MCU

Core: RISC

Operating frequency: 2.4GHz to 2.5GHz

Data bus width: 32 bit

Program memory size: 256 kB

Data RAM size: 32 kB

Max clock frequency: 32 MHz

ADC resolution: 10 bit

Supply voltage - Min: 2 V

Power supply voltage - Max: 3.6V

Maximum operating temperature: + 125°C

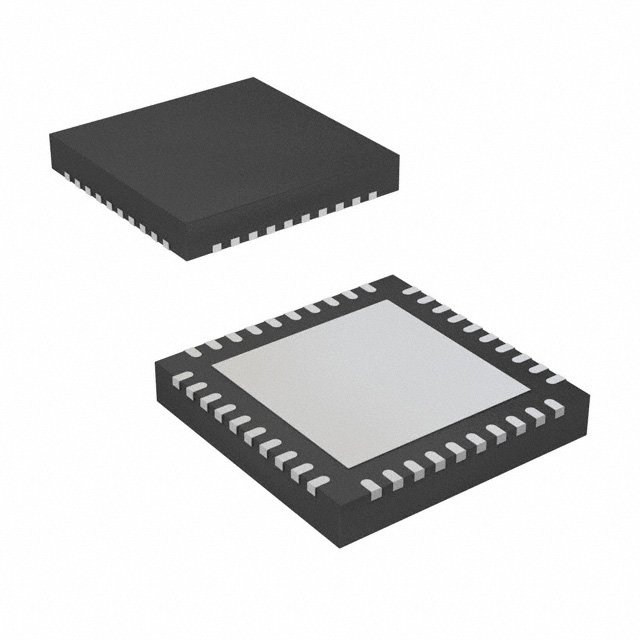

Package/housing: HVQFN-40

Installation style: SMD/SMT

Data Ram type: RAM

Interface type: 2-Wire, I2C, SPI, UART

Minimum operating temperature: -40 °C

Number of ADC channels: 4 channels

Number of input/output terminals: 20 I/O

Output power: 2.5 dBm

Processor series: JN516x

Program memory type: Flash

Series: JN5168
