Trade Name:JN5189THN
Brand:NXP
Particular Year:24+

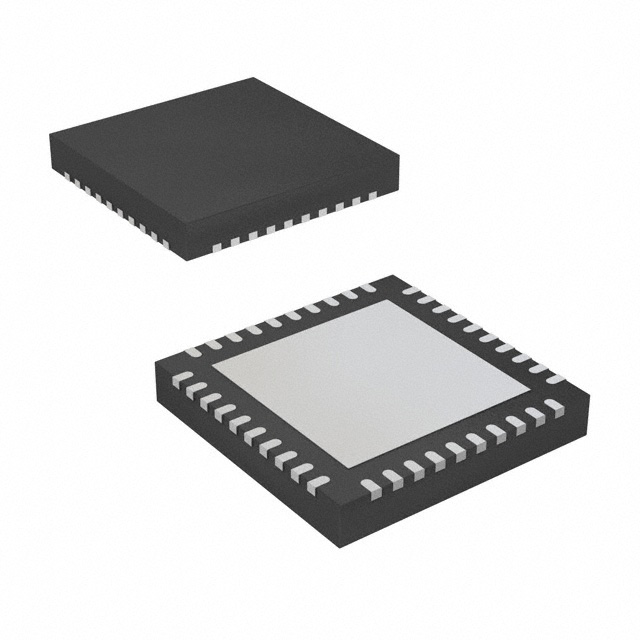

Package:40-VFQFN
Delivery Date:New and original
Stock: 1000pcs
The JN5189THN portfolio is designed to power a new generation of extremely low current wireless devices with support for Zigbee 3.0, Thread and IEEE 802.15.4. The JN5189 offers -100 dBm receiving sensitivity and +11 dBm transmitting output power, providing reliable and robust communication performance. The JN5189 uses an Arm® Cortex-M4 MCU and can run 640 KB of onboard flash memory and 152 KB of SRAM, providing plenty of space and flexibility for complex applications and OTA upgrades without the need for external memory.
specification
Product Category: RF Microcontroller-MCU
Core: ARM Cortex M4
Data bus width: 32 bit
Program memory size: 640 kB
Data RAM size: 152 kB
Max clock frequency: 32 MHz
ADC resolution: 12 bit
Supply voltage - Minimum: 1.9V
Power supply voltage - Max: 3.6V
Maximum operating temperature: + 125°C
Package/housing: HVQFN-40
Installation style: SMD/SMT
Data Ram type: RAM
Interface type: I2C, SPI, UART
Minimum operating temperature: -40 °C
Humidity sensitivity: Yes
NF - Noise factor: 5.7 dB
Number of ADC channels: 8 channels
Number of inputs/outputs: 21 I/ OS
Output power: 11.2 dBm
Processor series: JN5189
Program memory type: Flash
Series: JN5189T
