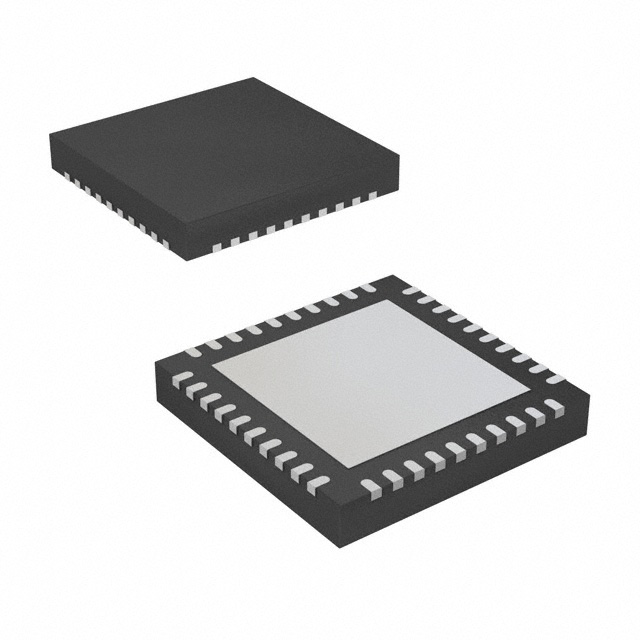

Trade Name:JN5188THN/001Z
Brand:NXP
Particular Year:24+
Package:40-HVQFN
Delivery Date:New and original
Stock: 1000pcs
The JN5188 portfolio is designed to power a new generation of extremely low current wireless devices with support for Zigbee 3.0, Thread and IEEE 802.15.4. The JN5188THN/001Z uses an Arm® Cortex-M4 MCU and can run 320 KB of onboard flash memory and 88 KB of SRAM, providing plenty of space and flexibility for complex applications and OTA upgrades without the need for external memory.
specification
Product Category: RF Microcontroller-MCU
Core: ARM Cortex M4
Operating frequency: 2.4GHz to 2.5GHz
Data bus width: 32 bit
Program memory size: 320 kB
Data RAM size: 88 kB
Max clock frequency: 32 MHz
ADC resolution: 12 bit
Supply voltage - Minimum: 1.9V
Power supply voltage - Max: 3.6V
Maximum operating temperature: + 125°C
Package/housing: HVQFN-40
Installation style: SMD/SMT
Data Ram type: RAM
Interface type: I2C, SPI, UART
Minimum operating temperature: -40 °C
Humidity sensitivity: Yes
NF - Noise factor: 5.7 dB
Number of ADC channels: 8 channels
Number of inputs/outputs: 21 I/ OS
Output power: 11.2 dBm
Processor series: JN5188
Model
Brand
Package
Quantity
Describe
