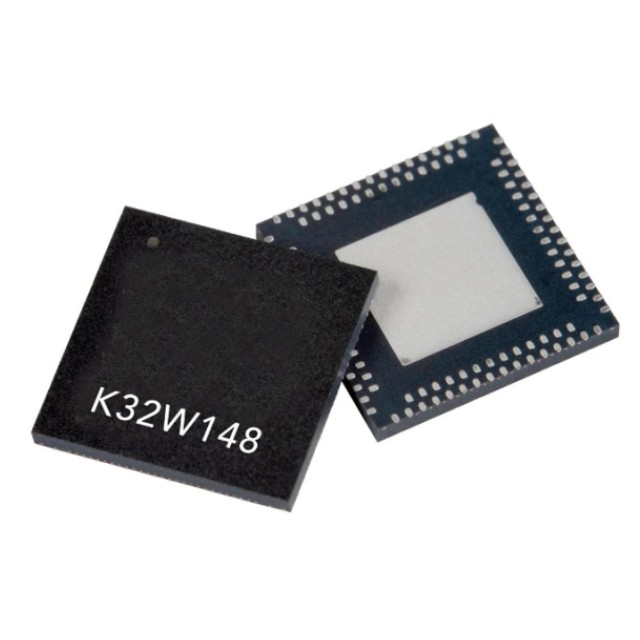

The K32W1480VFTBR multi-protocol wireless MCU is a low-power, highly secure single-chip solution with integrated BLE5.3 radio and IEEE 802.15.4 radio® supporting protocols such as Thread, Matter, and Zigbee.The K32W148 features a triple-core architecture that isolates the connectivity, computation, and security functions. The multi-protocol radio is not only energy-efficient, but also supports a full synchronised dualPAN to facilitate the exploitation of Thread and Zigbee protocols, developed for Wi-Fi coexistence. The radio is enhanced with a tested software stack supporting Matter, Thread, Zigbee and Blue® Tooth low power for standalone and hosted applications, powering a variety of IoT and industrial applications.

Product Attributes

Type: TxRx + MCU

RF family/standard: 802.15.4, Bluetooth

Protocols: Bluetooth v5.2, Thread, Zigbee

Modulation: FSK, GFSK, GMSK, MSK

Frequency: 2.4GHz

Data Rate (Max): 2Mbps

Power - Output: 10dBm

Sensitivity: -106dBm

Storage Capacity: 1MB Flash, 128kB SRAM

Serial Interface: I2C, I2S, SPI, UART

Voltage - Supply: 1.71V ~ 3.6V

Current - Receive: 8.7mA

Current - Transmit: 22.4mA

Operating Temperature: -40°C ~ 105°C

Mounting Type: Surface Mount, Wettable Sides

Package/Housing: 48-VFQFN Exposed Pad

Supplier Device Package: 48-HVQFN (7x7)
