The MC56F80748VLH digital signal controllers (DSCs) are based on the high-performance 100MHz 56800EF DSP core and provide mathematical functions for advanced power conversion and motor control applications. These controllers include advanced high-speed and high-precision peripherals such as 8-channel eFlexPWM with 312ps resolution, dual high-speed 12-bit ADCs, a quadrature decoder, and three analogue comparators. The inter-module crossbar and EVTG create an interconnection network between external pins and module I/Os with hardware logic/trigger operation for outstandingly flexible system configurations.

Specification

Product Category: Digital Signal Processors and Controllers - DSPs, DSCs

Product: DSCs

Cores: 56800EF

Number of Cores: 1 Core

Maximum clock frequency: 100 MHz

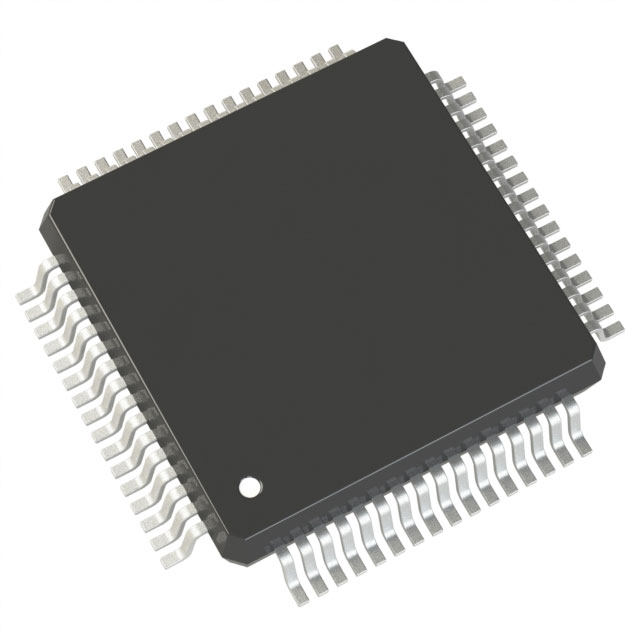

Package / Case: LQFP-64

Programme memory size: 64 kB

Data RAM size: 4 kB

Operating supply voltage: 3.3 V

Series: 56F807xx

Mounting style: SMD/SMT

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data bus width: 32 bit

Description Type: Floating Point

Interface type: SPI

Humidity sensitivity: Yes

Number of inputs/outputs: 54 I/Os

Number of Timers/Counters: 1 Timer

Processor Family: MC56F80

Programme memory type: Flash

Supply Voltage-Max: 3.6 V

Supply Voltage - Min: 2.7 V

Typical applications include power distribution systems, photovoltaic systems, advanced motor control, appliance motors, microinverters, solar power optimisers, wireless charging and advanced lighting.
