Trade Name:MC56F8246MLFR
Brand:NXP
Particular Year:24+
Package:LQFP48
Delivery Date:New and Original
Stock: 2000pcs

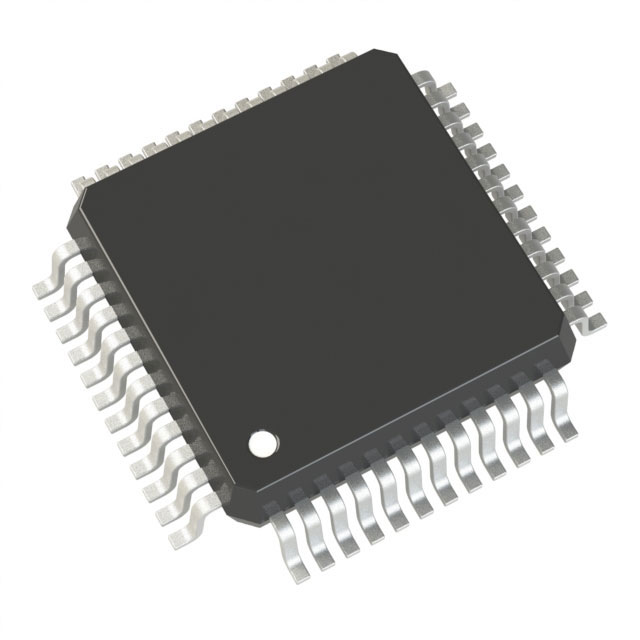

The NXP® MC56F8246MLFR is part of the Digital Signal Controller (DSC) family based on the 56800E core. It integrates DSP processing power and microcontroller functionality on a single chip and offers a flexible set of peripherals.
Features
60 MHz operation frequency
On-chip memory
eFlexPWM with up to nine channels, including six channels with high-resolution NanoEdge placement
Two 8-channel, 12-bit ADCs with dynamic x2 and x4 programmable amplifier
Three analog comparators with integrated 5-bit digital-to-analog converter (DAC) references
Cyclic redundancy check (CRC) generator
Multiple communication interfaces such as QSPI, QSCI with LIN functionality, SMBus-compatible I²C and MSCAN 2.0 A/B module
Two 16-bit quad timers (2 x 4 16-bit timers)
On-chip relaxation oscillator: 8 MHz (400 kHz at standby mode)
Inter-module crossbar connection
Applications
Industrial control
Three-phase AC induction motors
Solar photovoltaic (PV) power generation
Brushless DC motor (BLDC) control
Permanent magnet synchronous motors (PMSM)
