The NXP MC56F8025VLDR digital signal controller belongs to the DSC family based on the 56800E core. It provides both digital signal processor (DSP) processing power and microcontroller functions on a single chip with a flexible set of peripherals.

Product Attributes

Product Category: Digital Signal Processors and Controllers - DSP, DSC

Products: DSCs

Cores: 56800E

Number of Cores: 1 Core

Maximum clock frequency: 32 MHz

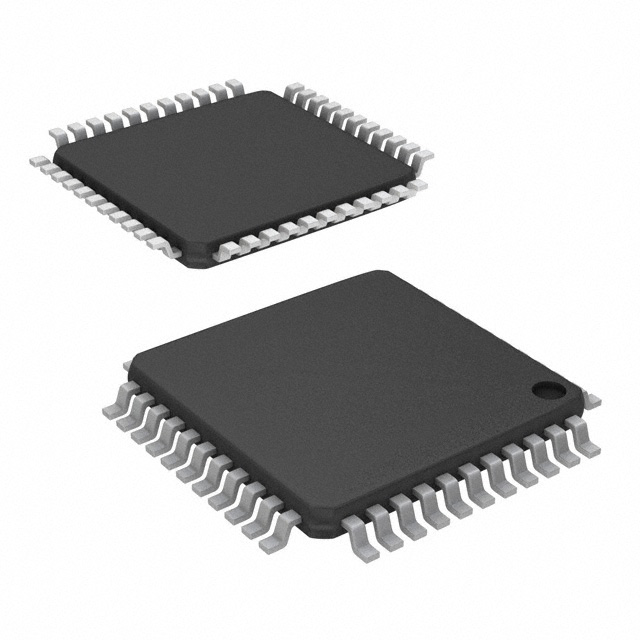

Package / Case: QFP-44

Programme memory size: 32 kB

Data RAM size: 4 kB

Operating supply voltage: 2.5 V

Series: 56F802x

Mounting style: SMD/SMT

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data bus width: 16 bit

Data ROM size: 32 kB

Interface type: I2C, LIN, SCI, SPI

Humidity sensitivity: Yes

Number of inputs/outputs: 35 I/Os

Number of timers/counters: 1 Timer

Supply voltage - max: 3.6 V

Supply Voltage - Min: 3 V

The MC56F8025VLDR devices support industrial lighting and motor control, home appliances, inverters, smart sensors, fire safety systems, switching power supplies, power management and medical monitoring applications.
