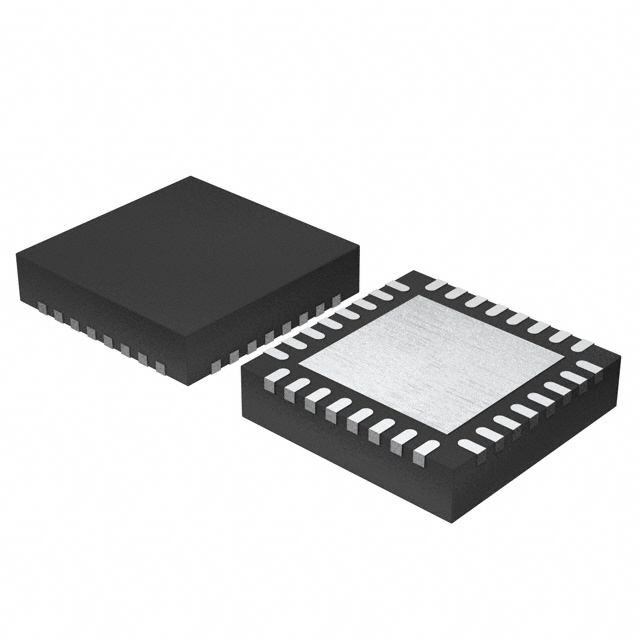

The MC56F82733MFM is a family of Digital Signal Controllers (DSCs) with excellent operating power consumption, performance, accuracy and control.

Features

Low-power operation reduces power loss and improves system efficiency

5 mm x 5 mm package option enables a compact PCB design for space-constrained applications while still providing the precision and control required

100 MHz 32-bit core provides advanced power efficiency and math functions for motor control applications

Single-cycle math calculations, fractional arithmetic support, and parallel moves improve performance and drive tighter, faster control loops

High-resolution PWM with 312 picosecond resolution enables higher switching frequencies to reduce cost and improve efficiency

Two 12-bit high-speed (HS) ADCs with resolutions up to 1.25 MSPS improve system accuracy by reducing jitter in input values

32 KB to 64 KB Flash provides the scalability needed for critical digital power and motor control applications

Pin-to-pin compatibility with MC56F84xxx and MC56F824x/5x families for performance and peripheral scalability

5-volt tolerant I/O provides design flexibility and lowers system cost

Direct memory access (DMA) controller reduces core interrupts and improves performance

Four analog comparators with integrated 6-bit DACs speed system event recognition and emergency shutdown of PWM outputs

Memory protection improves system security by restricting user code access to critical memory locations and reserving peripherals for supervisor access

On a single chip, each device combines the processing power of a DSP with the functionality of an MCU and a flexible set of peripherals to support a wide range of target applications:

 - Industrial control - Home appliances - Smart sensors - Wireless charging

- Switch-mode power supplies and power management

- Power distribution systems

- Motor control (ACIM, BLDC, PMSM, SR, stepper motors)

- Photovoltaic systems

- Circuit breakers

- Medical devices/equipment

- Instrumentation

- Uninterruptible Power Supplies (UPS)

- Lighting
