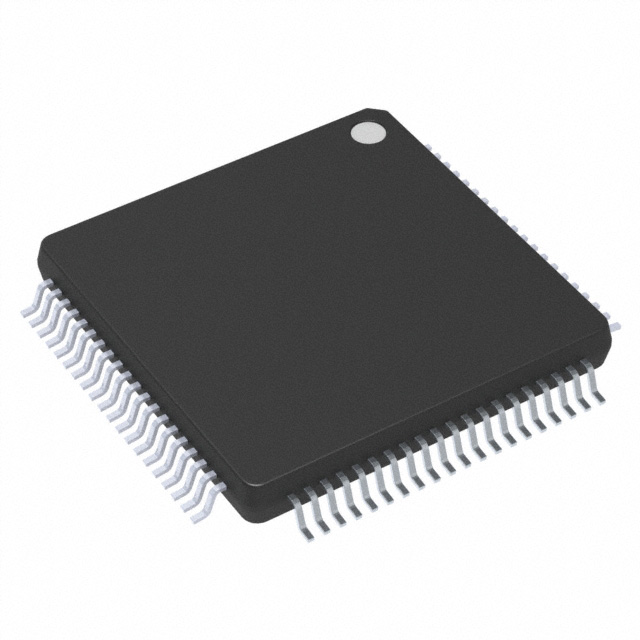

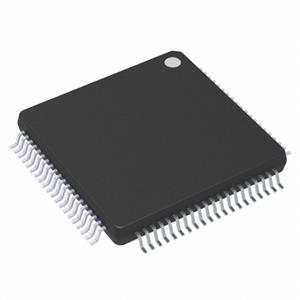

The MC56F84786VLK is a 32-bit digital signal controller (DSC) based on the 32-bit 56800EX core, which has many features including three internal address buses, four internal data buses, 32-bit data access, and 20 addressing modes. The MC56F8xx 32-bit DSC combines the processing power of a DSP with the functionality of an MCU on a single chip. functions on a single chip. These digital signal controllers feature on-chip memory, PWM and timers, communication interfaces, security and integrity, and several clocks.

Product Attributes

Product Category: Digital Signal Processors and Controllers - DSPs, DSCs

Product: DSCs

Cores: 56800EX

Number of Cores: 1 Core

Maximum clock frequency: 100 MHz

Package / Case: QFP-80

Program memory size: 256 kB

Data RAM size: 32 kB

Operating supply voltage: 3.3 V

Family: MC56F84xxx

Mounting style: SMD/SMT

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Data bus width: 32 bit

Interface type: CAN, I2C, QSCI, QSPI

Humidity sensitivity: Yes

Number of inputs/outputs: 68 I/Os

Number of timers/counters: 4 Timer

Program memory type: Flash

Supply Voltage - Max: 3.6 V

Supply voltage - min: 2.7 V
