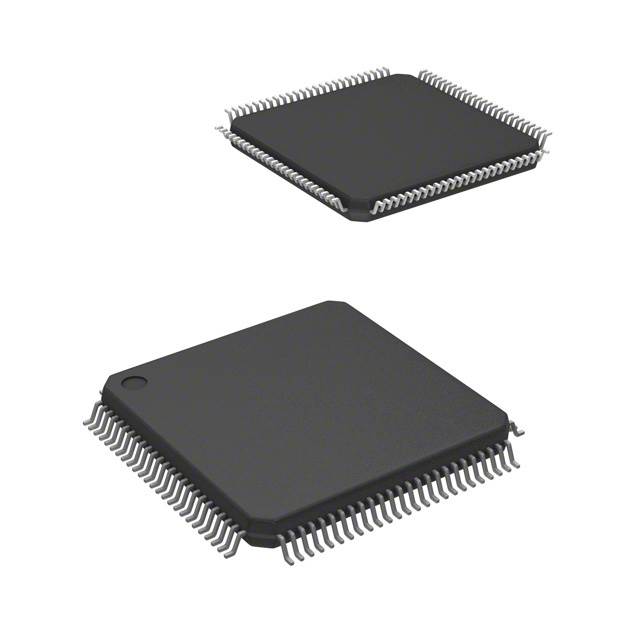

MC56F84567VLL This family of digital signal controllers (DSCs) is based on the 32-bit 56800EX core. Each device combines the processing power of a DSP, the functionality of an MCU, and a flexible set of peripherals on a single chip to support a wide range of target applications:

- Industrial control

- Household appliances

- Intelligent sensors

- Fire and security systems

 - Switch-mode power supplies and power management - Uninterruptible power supplies (UPS)

- Solar and wind generators

- Electricity metering

- Motor control (ACIM, BLDC, PMSM, SR, stepper motors)

- Handheld power tools

- Circuit breakers

- Medical devices/equipment

- Instrumentation

- Lighting

Device Specification

Core Processor: 56800EX

Core specification: 32-bit single core

Speed: 80MHz

Connectivity: CANbus, I2C, LINbus, SCI, SPI

Peripherals: Undervoltage Detect/Reset, DMA, LVD, POR, PWM, WDT

Number of I/O: 86

Program memory capacity: 128KB (128K x 8)

Programme memory type: Flash

EEPROM size : 2K x 8

RAM Size: 24K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 16x12b, 8x16b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 100-LQFP (14x14)

Package/Housing: 100-LQFP
