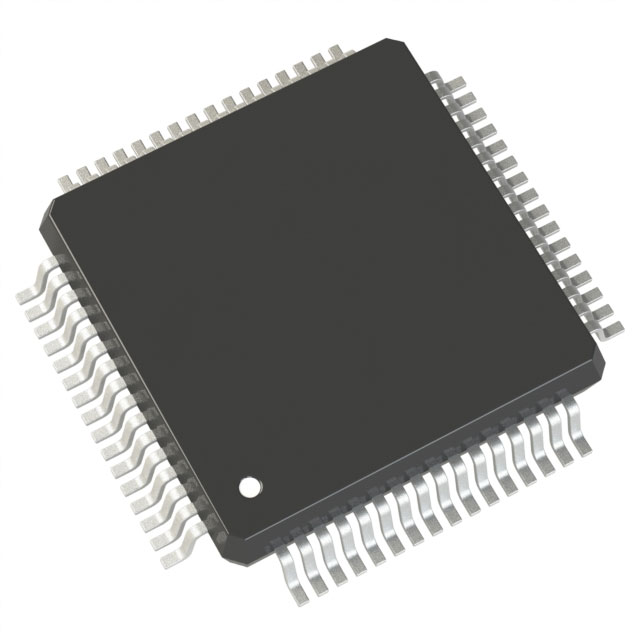

The MC56F84452VLH 32-bit Digital Signal Controller (DSC) is based on the 32-bit 56800EX core, which offers a number of features including three internal address buses, four internal data buses, 32-bit data access and 20 addressing modes.

Features

100 MHz/100 MIPS 32-bit DSP core

64 KB to 256 KB Flash flexibility and direct memory access (DMA) controller

Supports single-cycle maths operations, fractional arithmetic and parallel moves

Up to 24 PWM channels with input capture

High resolution PWM with 312 microsecond resolution

Two 12-bit high-speed (HS) ADCs with 3.3 Msps resolution

One 16-bit ADC with 1 Msps resolution

Four analogue comparators with built-in 6-bit digital-to-analogue converter (DAC) high-speed system event recognition and PWM output shutdown function

1 12-bit DAC with automatic waveform generation function

Various communication peripherals: 3 QSCI, 3 QSPI, 2 I²C/SM buses, 1 FlexCAN

Product Applications

Industrial control

Three-phase AC induction motors

Brushless DC motor (BLDC) control

Permanent magnet synchronous motors (PMSM)
