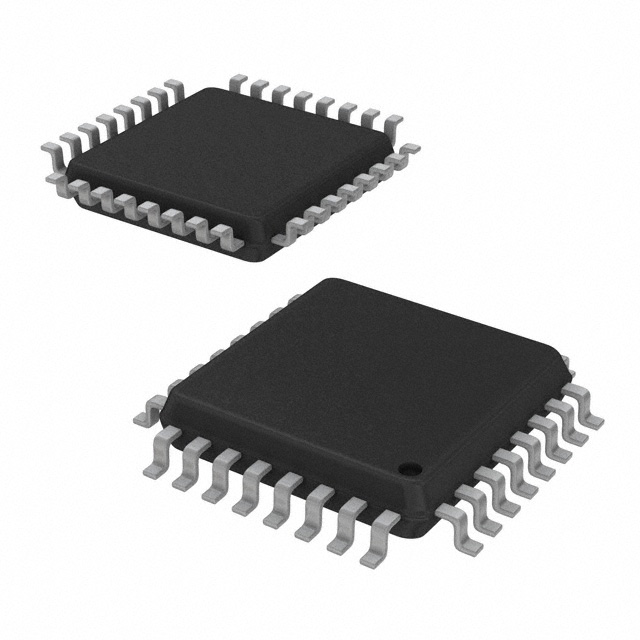

The MC56F8013VFAER2 is a member of the Digital Signal Controller (DSC) family based on the 56800E core. It combines the processing power of a DSP, the functionality of a microcontroller, and a flexible set of peripherals on a single chip, making it a very cost-effective solution. The 56F8013 is well suited for many applications due to its low cost, flexible configuration, and compact programme code. 56F8013 includes a number of peripherals that make it particularly suitable for industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supplies, power management, and medical monitoring applications.

Features

- It features a unified, cost-effective architecture with both DSP and MCU functionality and a 32 MHz core frequency for performance up to 32 MIPS.

- 16 KB Flash

- Up to 4 KB RAM

- Integrated peripherals:

- 6-channel PWM module

- Two 4-channel 12-bit ADCs

- One serial communication interface (SCI) with LIN slave function

- One serial peripheral interface (SPI)

- One inter-integrated circuit (I2C) port

- 26 general-purpose IOs

Specification

Core Processor: 56800E

Core specification: 16-bit

Speed: 32MHz

Connectivity: I2C, SCI, SPI

Peripheral: POR, PWM, WDT

Number of I/O: 26

Program memory capacity: 16KB (8K x 16)

Programme Memory Type: Flash

RAM Size: 2K x 16

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 6x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 32-LQFP (7x7)

Package/Housing: 32-LQFP
