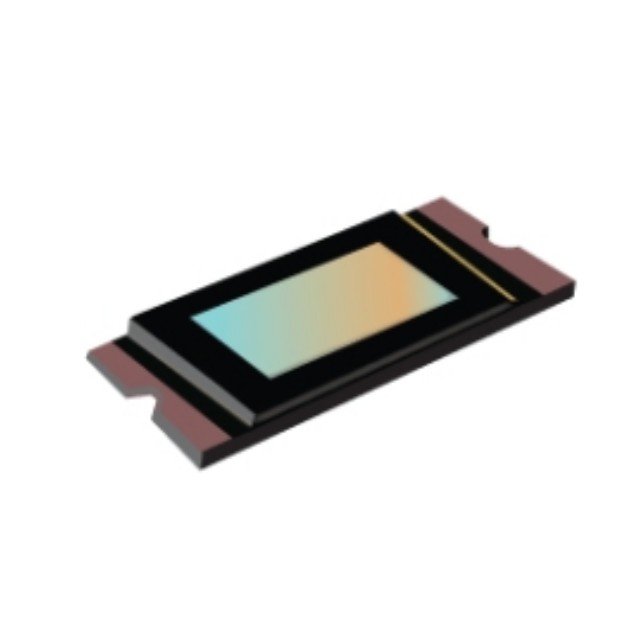

The DLP4500AFQD digital micromirror device (DMD) can be used as a spatial light modulator (SLM) to manipulate visible light and generate patterns quickly, accurately and efficiently. With its high crossover frequency and brightness, and compact form factor, the DLP4500 DMD is ideally suited for very precise portable 3D machine vision and display solutions used in industrial, medical and security applications.

Features

• 0.45-Inch Diagonal Micromirror Array

– 912 × 1140 Resolution Array (>1 Million Micromirrors)

– Diamond Array Orientation Supports Side Illumination for Simplified, Efficient Optics Designs

– Capable of WXGA Resolution Display

– 7.6-µm Micromirror Pitch

– ±12° Tilt Angle

– 5-µs Micromirror Crossover Time

• Highly Efficient Steering of Visible Light

– Window Transmission Efficiency 96% Nominal (420 to 700 nm, Single Pass Through Two Window Surfaces)

– Polarization-Independent Aluminum Micromirrors

– Array Fill Factor 92% (Nominal)

• Dedicated DLPC350 Controller for Reliable Operation

– Binary Pattern Rates Up to 4 kHz

– Pattern Sequence Mode for Control Over Each Micromirror in Array

• Integrated Micromirror Driver Circuitry

• 9.1-mm × 20.7-mm for Portable Instruments

– FQE Package With Simple Connector Interface

– FQD Package With Enhanced Thermal Interface

Applications

• Machine Vision

– 3-D Depth Measurement

– Robotic Guidance

– Inline Surface Inspection

– Pick and Place

– 3-D Capture

– Defect Rejection

• Medical Instruments

– 3-D Dental Scanners

– Vascular Imaging

• 3-D Biometrics

– Fingerprint Identification

– Facial Recognition

• Virtual Gauges

• Augmented Reality

• Interactive Display

• Microscopes
