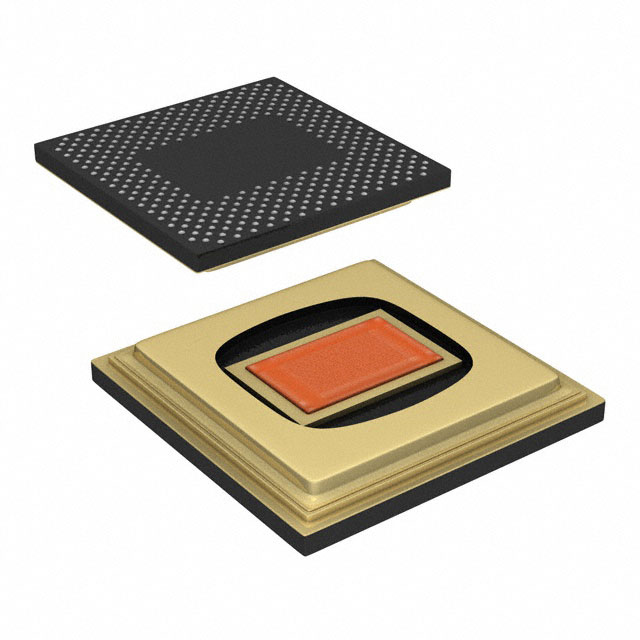

For picture reference, please see the specifications
< >

Commodity Model:DLP9000BFLS

Trade Name:DLP9000BFLS

Data Manual:DLP9000BFLS.pdf

Brand:TI

Particular Year:23+

Package:355-CLGA

Delivery Date:New and Original

Stock: 1198pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DLP9000BFLS
Package
355-CLGA
Describe
DLP9000 Family of 0.9 WQXGA Type A DMDs

Product Description

The high-resolution DLP9000BFLS Digital Micromirror Device (DMD) is a spatial lighting modulator (SLM) that modulates the amplitude, direction and/or phase of incident light, with over four million micromirrors. This advanced lighting control technology is suitable for many applications in the industrial, medical and consumer markets.


Features

High resolution 2560×1600 (WQXGA) array

Over four million micromirrors

7.56µm micromirror pitch

0.9" micromirror array diagonal

±12° micromirror tilt angle (relative to flat state)

Designed for edge illumination

Integrated micromirror driver circuitry

Two high-speed options

DLP9000XFLS with DLPC910 controller

480Mhz input data clock rate

Maximum pixel data rate greater than 61 Gigabits per second for continuous input data streams

1-bit binary mode rates up to 15kHz

8-bit greyscale mode with modulated lighting up to 1.8kHz

DLP9000FLS with two DLPC900 controllers

400Mhz input data clock rate

Maximum pixel data rate greater than 38 Gigabits per second with up to 400 pre-stored binary modes

1-bit binary modes up to 9.5kHz

8-bit greyscale patterns up to 247Hz

Designed for wide wavelength range

400nm to 700nm

Window transmission efficiency 95% (single-pass, through double-windowed surfaces)

Micromirror reflectivity 88 per cent

Array diffraction efficiency 86

Array fill factor 92


Applications

Industrial

Machine vision and quality control

3D Printing

Direct imaging lithography

Laser marking and repair

Medical

Ophthalmology

3D scanners for extremity and skin measurements

Hyperspectral imaging

Hyperspectral scanning

Displays

3D Imaging Microscope

Intelligent and adaptive lighting
