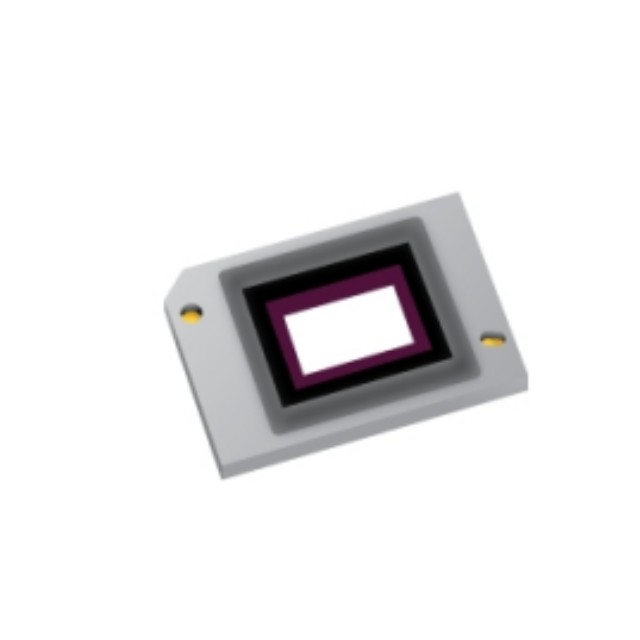

The DLP650LNIRFYL digital micromirror device acts as a spatial light modulator (SLM) to control near-infrared (NIR) light and generate high-speed graphics for advanced imaging in industrial equipment. The device is available in a highly efficient, heat-sinkable package that allows customers to combine DMD with high-power NIR laser illumination to provide dynamic digital printing, sintering, and marking solutions.

Features

1280 x 800 (WXGA) array with 1+ million micromirrors

10.8µm micromirror pitch

±12° micromirror tilt (relative to flat state)

0.65" diagonal array designed for corner illumination

0.5°C/W thermal resistance efficient package

Efficient manipulation of NIR light (800nm to 2000nm)

Up to 160W events on DMD

Window transmission efficiency >98% (950nm to 1150nm, single pass, dual window face)

Window transmission efficiency >93% (850nm to 2000nm, single pass, dual pane)

Polarisation-independent aluminium micromirror

16-bit, 2xLVDS, 400MHz input data bus

Dedicated DLPC410 controller, DLPR410 PROM and DLPA200 micromirror driver for reliable high-speed operation

Binary mode rates up to 12,500Hz

Global, single, dual and quad micromirror clock pulse (reset) modes of operation

Applications

3D printing, selective laser sintering (SLS)

Dynamic greyscale laser marking and coding

Industrial printing, flexographic printing, digital plate making

Repair and etching

Spectroscopy

3D machine vision and 3D biometrics

Infrared scene projection

Hyperspectral imaging

Optical Switching
