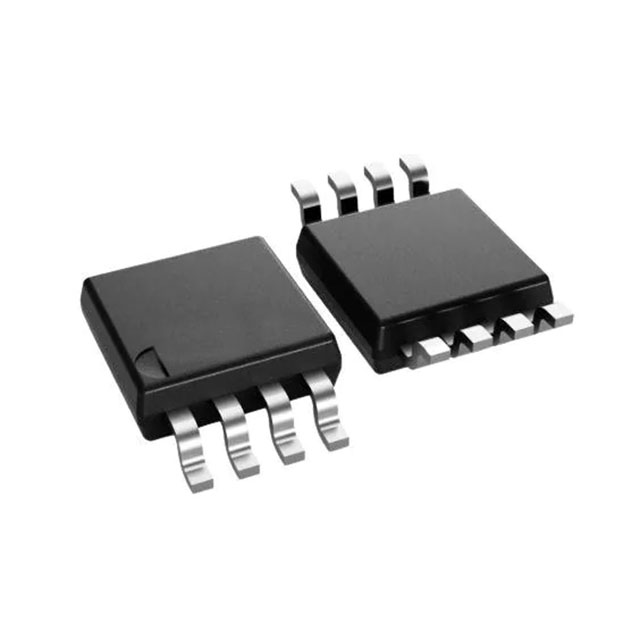

INA310A3QDGKRQ1 is an ultra-precise current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from –4 V to 110 V, independent of supply voltage with an integrated comparator.

Features

Functional Safety-Capable

Documentation available to aid functional safetysystem design

Wide common-mode voltage

Operational voltage: −4 V to +110 V

Survival voltage: −20 V to +120 V

High signal bandwidth: 1.3 MHz

Slew rate: 2.5 V/µs

Excellent CMRR: 160 dB

Onboard open-drain comparator

Internal comparator voltage reference: 0.6 V

Propagation delay time: 1 µs

Latching capability on comparator

Applications

eTurbo/charger

Electric power steering (EPS)

Starter/generator

Regenerative breaking

Brake system
