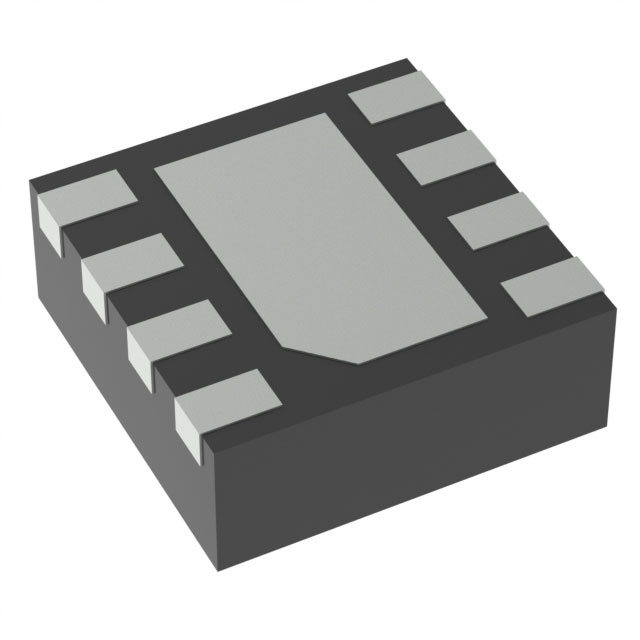

OPA2387DSGR featureflat bias current over temperature; therefore, little to no calibration is needed in high input impedance applications over temperature.

Features

Ultra-low offset voltage: ±2 µV (maximum, tested)

Zero drift: ±0.003 µV/°C

Low-input bias current: 150 pA (maximum, tested)

Low noise: 8.5 nV√Hz at 1 kHz

No 1/f noise: 177 nVPP (0.1 Hz to 10 Hz)

Common-mode input range ±100 mV beyondsupply rails

Gain bandwidth: 5.7 MHz

Quiescent current: 570 μA per amplifier

Single supply: 1.7 V to 5.5 V

Dual supply: ±0.85 V to ±2.75 V

EMI and RFI filtered inputs

Applications

Electronic thermometer

Weigh scale

Temperature transmitter

Ventilators

Data acquisition (DAQ)

Semiconductor test

Lab and field instrumentation

Merchant network and server PSU

Analog input module

Pressure transmitter
