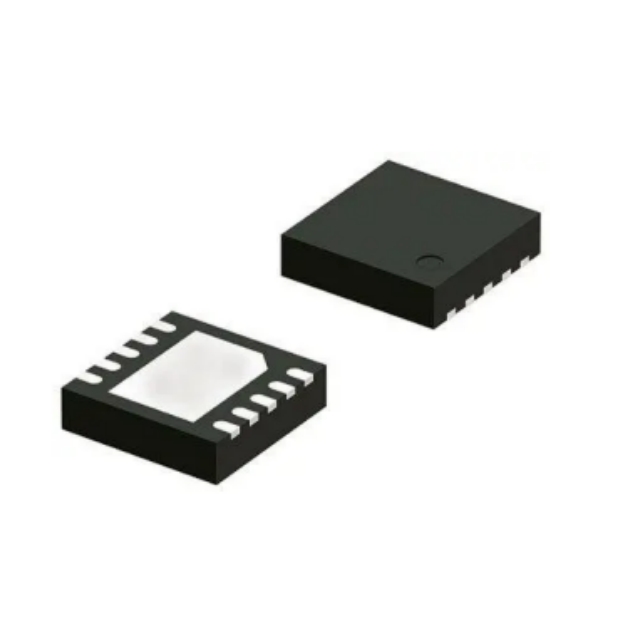

The WLAN7001CZ is a fully integrated RF front-end MMIC for 802.11a/n/ac WLANs with channel bandwidths up to 80 MHz.It includes a low-noise amplifier, a single-pole-double-throw switch required for TDD operation. It also includes a transmit power amplifier and an integrated power detector covering the entire ISM band. Harmonic and coexistence filters are integrated, with an RX bypass mode for high-power signal processing and a low-power TX mode for optimised power efficiency. Available in the HX2SON10 package with a 1.7 mm × 2.0 mm footprint and 300 μm thickness.

Features and Benefits

● Full ISM high band 5150 MHz to 5850 MHz

● Fully integrated RF front-end

● Low noise amplifier (LNA) with bypass mode

● Single-pole, double-throw switch (SPDT)

● Power amplifiers (PAs) with high linearity and low-power modes

● Integrated power detector for closed-loop control

● Integrated 50 Ω matching of inputs and outputs; no DC input/output ports

● Integrated harmonic and coexistence filters

● Supply voltage 3.0 V to 4.75 V

● Supply current as low as 8 mA in RX mode for optimised performance

● Low RX noise figure = 2.35 dB

● High efficiency: 185 mA supply current in TX mode at +17 dBm, MCS9

● TX output power of +15 dBm at 1.25 % DEVM (MCS9/VHT80)

● +17.5 dBm TX output power at 2.0 % DEVM (MCS7/HT40)

● ESD protection on all pins (HBM > 2 kV)

● Small 10-pin leadless package 1.7 mm × 2.0 mm × 0.3 mm; 0.35 mm pitch

Applications

● IEEE 802.11a/n/ac WiFi, WLAN

● Smartphones, tablets, netbooks, and other portable computing devices

● Access points, routers, gateways

● Wireless video

● Generic ISM applications
