Trade Name:Wireless LAN
Data Manual:RTL8711AF-VB1-CG.pdf
Brand:REALTEK
Particular Year:23+
Package:QFN-48
Delivery Date:New and Original
Stock: 1000pcs
The RTL8711AF-VB1-CG is a highly integrated single chip with a low-power mechanism that is ideal for Iot (Internet of Things) applications. It integrates the ARM®Cortex™-M3 MCU, WLAN MAC, WLAN baseband /RF with 1T1R support, and NFC in a single chip. It also offers a configurable GPIO that can be used as a digital peripheral for a variety of product applications and control purposes.
The RTL8711AF integrates internal memory and flash memory to minimize the size of Iot end products and reduce development costs. Embedded memory configuration enables simpler and faster application development.
Features:
CPU:
ARM®Cortex™-M3 (up to 166MHz)
Memory:
1MB embedded ROM
512KB of embedded RAM
1MB embedded flash memory
Wi-Fi:
2.4GHz 1T1R 802.11b/G/n up to 150Mbps 20MHz and 40MHz
Security:
Wi-Fi WEP, WPA, WPA2, WPS
Security engines: MD5, Sha-1, SHA2-256, DES, 3DES, AES
Peripheral interface:
SDIO slave machine
NFC Tag (Read/Write)
UART X 3 (HS-UART X 2, log UART X 1)
SPI interface X 2
I2S port X 1
I2C interface X 3
Pulse width modulation X 4
Up to 21 GPIOs
Package: QFN-48 (6 x 6 mm)
Model
Brand
Package
Quantity
Describe
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Realtek Semiconductor was established in 1987 and is located in Hsinchu Science Park, which is known as the "Silicon Valley" of Taiwan. With the enthusiasm and perseverance of several young engineers back then, Realtek has gone through a ard…

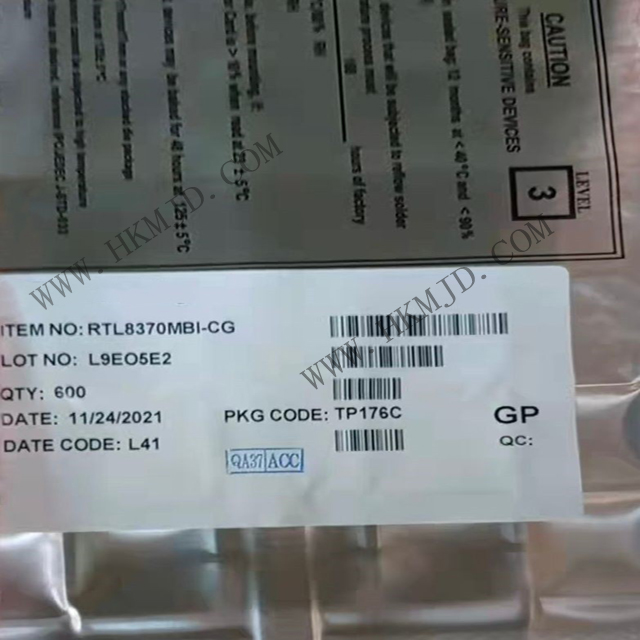

RTL8370MBI

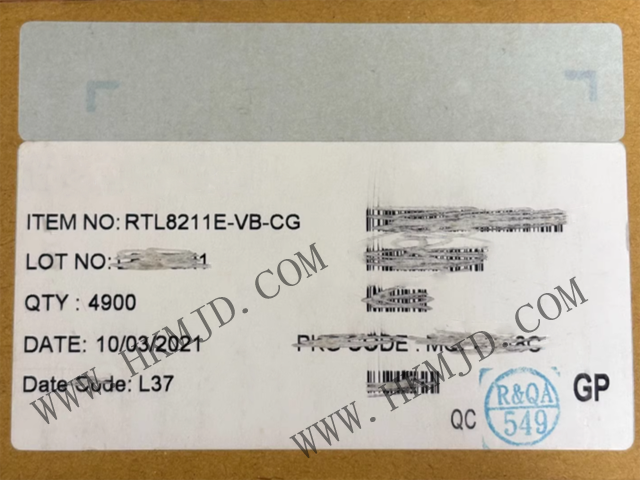

The RTL8370MBI is a high-performance 8-port Gigabit Ethernet switch chip developed by Realtek Semiconductor.RTL8211E-VB-CG
