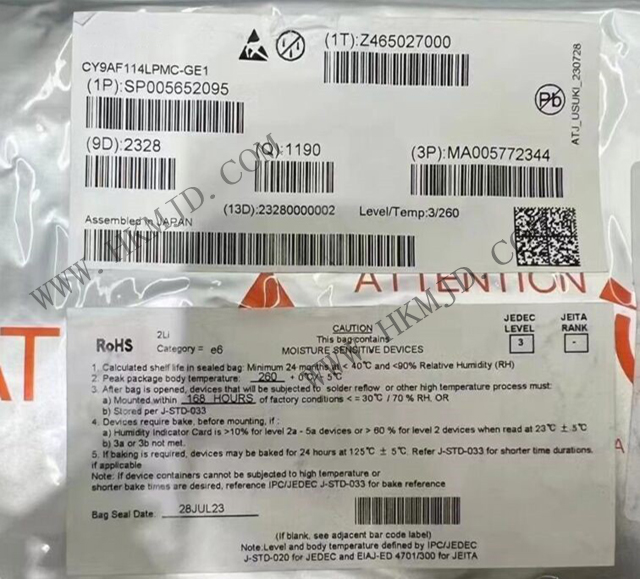

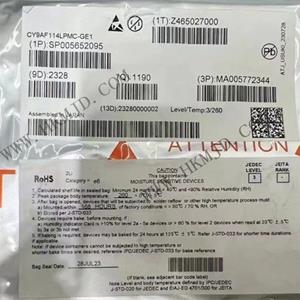

The CY9AF114LPMC-GE1 is a highly integrated 32-bit microcontroller targeted at high-performance and cost-sensitive embedded control applications.

The CY9AF114LPMC-GE1 is based on the Arm® Cortex®-M3 processor, on-chip Flash and SRAM, as well as peripheral functions such as motor control timers, ADCs, communication interfaces (UART, CSIO, I2C, LIN).

Features

32-bit Arm Cortex-M3 core

 Processor version: r2p1

Up to 40 MHz frequency operation

 Integrated Nested Vector Interrupt Controller (NVIC): 1 NMI (non-maskable interrupt) and 48 peripheral interrupts and 16 priority levels.

24-bit Sys Tick: system timer for OS task management manages on-chip memory

Flash memory

Up to 512 Kbyte.

 Read Cycle: 0 Wait Cycle

 Code Protection Security Function [SRAM].

This series contains on-chip SRAM totalling up to 32 Kbytes.

The on-chip SRAM consists of two independent SRAMs (sram0, sram1). The on-chip SRAM consists of two independent SRAMs (SRAM0, SRAM1).

SRAM0 is connected to the I-code bus and D-code bus of the Cortex-M3 core, and SRAM1 is connected to the system bus.

SRAM0: up to 16 kilobytes.

SRAM1: up to 16 kilobytes Multi-function serial interface (up to 8 channels)

4 channels with 16-step x 9-bit FIFO (channels 4-channel 7), 4 channels without FIFO (channels 0-channel 3). Without FIFO (channel 0-channel 3)
