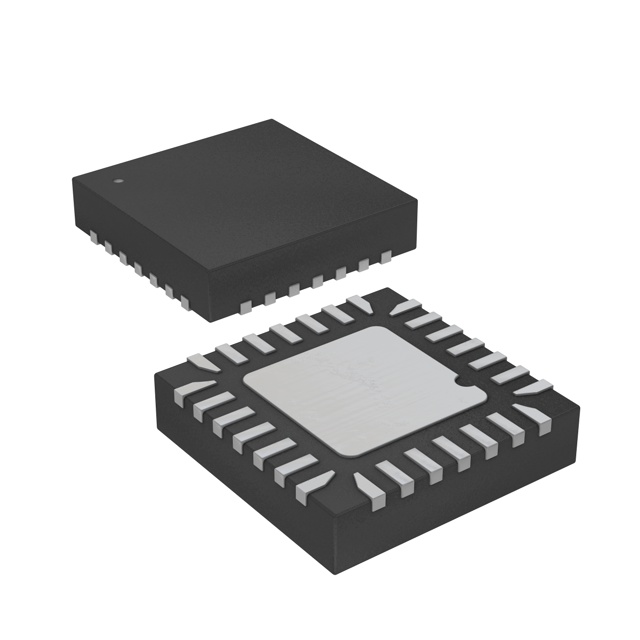

For picture reference, please see the specifications
< >

Commodity Model:PIC18F26Q71-E/STX

Trade Name:PIC18F26Q71-E/STX

Data Manual:PIC18F26Q71-E/STX.pdf

Brand:Microchip

Particular Year:23+

Package:28-VFQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
PIC18F26Q71-E/STX
Package
28-VFQFN
Describe
PIC PIC® 18F Microcontroller IC 8-Bit 64MHz 64KB (64K x 8) Flash 28-VQFN (4x4)

Product Description

The PIC18F26Q71-E/STX is a 28/40/44/48-pin device for high-bandwidth mixed-signal and sensor applications. It is an ideal solution for the lighting, motor control and medical market segments. The family features a 12-bit differential ADC with computation and context switching, two operational amplifiers, a 10-bit digital-to-analogue converter (DAC), two 8-bit DAC modules with buffered outputs and internals with other peripherals, and two advanced high-speed analogue comparators. There is also an 8-bit virtual port module to interconnect digital peripherals without the use of external pins.


Product Attributes

Core Processor: PIC

Core specification: 8-bit

Speed: 64MHz

Connectivity: FIFO, I²C, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, LVD, POR, PWM, WDT

Number of I/O: 26

Program memory capacity: 64KB (64K x 8)

Programme memory type; Flash

EEPROM Size: 256 x 8

RAM Size: 4K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V

Data Converter: A/D 24x12b SAR; D/A 2x8b, 1x10b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 28-VFQFN Exposed Pad

Supplier Device Package: 28-VQFN (4x4)
