The Microchip USB5742B/2G hub is low-power, OEM configurable, USB 3.2 Gen 1 hub feature controller with 2 downstream ports and advanced features for embedded USB applications. The USB5742 is fully compliant with the Universal Serial Bus Revision 3.2 Specification and USB 2.0 Link Power Management Addendum. The USB5742 supports 5 Gbps SuperSpeed (SS), 480 Mbps Hi-Speed (HS), 12 Mbps Full-Speed (FS), and 1.5 Mbps Low-Speed (LS) USB downstream devices on all enabled downstream ports.

The USB5742BT-I/2G supports the legacy USB speeds (HS/FS/LS) through a dedicated USB 2.0 hub feature controller that is the culmination of five generations of Microchip hub feature controller design and experience with proven reliability, interoperability, and device compatibility. The SuperSpeed hub feature controller operates in parallel with the USB 2.0 controller, decoupling the 5 Gbps SS data transfers from bottlenecks due to the slower USB 2.0 traffic. The USB5742 supports downstream battery charging.

The USB5742BT-I/2G integrated battery charger detection circuitry supports the USB-IF Battery Charging (BC1.2) detection method and most Apple devices.

Product Features

• Two downstream USB3.2 Gen1/2.0 ports

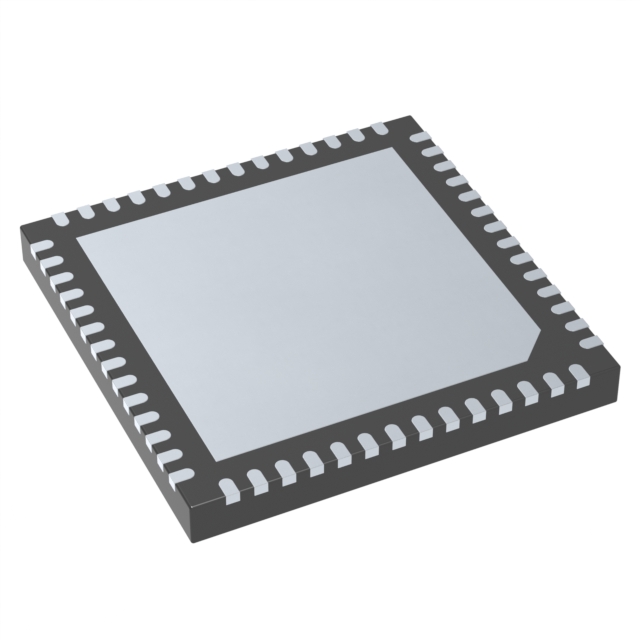

• 56pin (7 x 7 mm) 0.4mm pitch, SQFN lead-free, RoHS compliant package

• Simultaneous data transfer for 2500 mA of High Speed charging

• Enables charging from a mobile platform that is powered-off

• Integrated Hub Feature Controller (HFC) enabling port and GPIO configuration through OTP

• Port Config Straps: Predefined configuration of port settings – Battery Charging, Non-Removable, Disable

• MPLAB Connect Configurator™: Tool to enable enhanced OEM configuration options through either One-Time Programmable (OTP) (8Kbit) or external SPI ROM

• Manufacturing line programming tool and field update capabilities

• USB Link Power Management (LPM) support

• IETF RFC 4122 compliant 128-bit UUID

• Compatible with Microsoft® Windows® and other major OS’s

• Industrial grade temperature support (-40°C to +85°C)

Target Applications

• Standalone USB Hubs

• Laptop Docks

• PC Motherboards

• PC Monitor Docks

• Multi-function USB 3.2 Gen 1 Peripherals
